Removal [09/2020 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR LIGHT ASSEMBLY
Refer to REMOVAL [09/2020 - ]

REMOVE LICENSE PLATE LIGHT ASSEMBLY

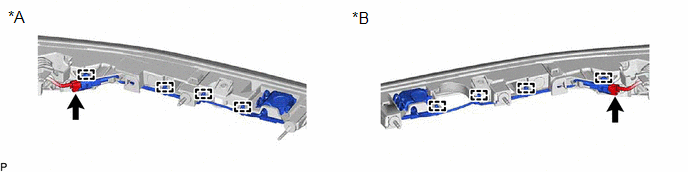

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for RH Side

for LH Side

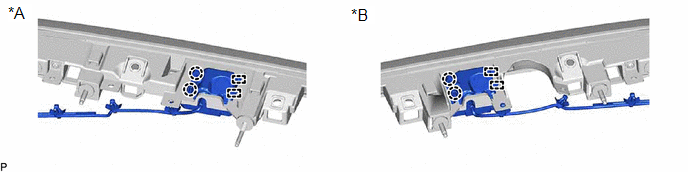

Disengage the 4 clamps.

Disengage the 2 claws and 2 guides to remove the license plate light assembly.

for RH Side

for LH Side
