Inspection [04/2013 - 10/2016]: Procedure
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT REAR COMBINATION LIGHT LENS AND BODY LH
- Remove the rear combination light lens and body LH.

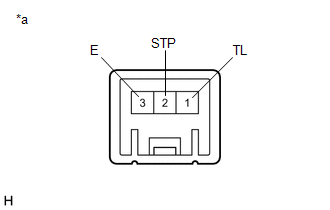

*a Component without harness connected
(Rear Combination Light Lens and Body LH) - Apply battery voltage to the rear combination light lens and body LH and check that the lights come on.
OK
Condition Specified Condition Battery positive (+) → Terminal 1 (TL)
Battery negative (-) → Terminal 3 (E)Taillight comes on Battery positive (+) → Terminal 2 (STP)
Battery negative (-) → Terminal 3 (E)Stop light comes on If the result is not as specified, repair or replace the rear combination light lens and body LH.
- Remove the rear combination light lens and body LH.
- INSPECT REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH
- Reconnect the rear combination light socket and wire sub-assembly LH to the rear combination light lens and body LH.

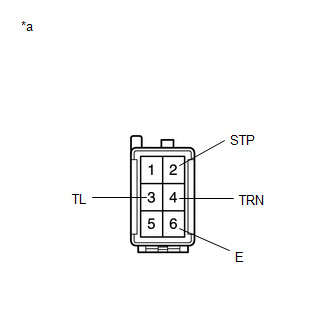

*a Component without harness connected
(Rear Combination Light Socket and Wire Sub-assembly LH) - Apply battery voltage to the rear combination light socket and wire sub-assembly LH and check that the lights come on.
OK
Condition Specified Condition Battery positive (+) → Terminal 2 (STP)
Battery negative (-) → Terminal 6 (E)Stop light comes on Battery positive (+) → Terminal 3 (TL)
Battery negative (-) → Terminal 6 (E)Taillight and rear side marker light come on Battery positive (+) → Terminal 4 (TRN)
Battery negative (-) → Terminal 6 (E)Turn signal light comes on If the result is not as specified, repair or replace the rear combination light socket and wire sub-assembly LH.
- Reconnect the rear combination light socket and wire sub-assembly LH to the rear combination light lens and body LH.
- INSPECT REAR COMBINATION LIGHT LENS AND BODY RH
- Remove the rear combination light lens and body RH.
*a Component without harness connected
(Rear Combination Light Lens and Body RH) - Apply battery voltage to the rear combination light lens and body RH and check that the lights come on.
OK
Condition Specified Condition Battery positive (+) → Terminal 1 (TL)
Battery negative (-) → Terminal 3 (E)Taillight comes on Battery positive (+) → Terminal 2 (STP)
Battery negative (-) → Terminal 3 (E)Stop light comes on If the result is not as specified, repair or replace the rear combination light lens and body RH.
- Remove the rear combination light lens and body RH.
- INSPECT REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH
*a Component without harness connected
(Rear Combination Light Socket and Wire Sub-assembly RH)Reconnect the rear combination light socket and wire sub-assembly RH to the rear combination light lens and body RH.
- Apply battery voltage to the rear combination light socket and wire sub-assembly RH and check that the lights come on.
OK
Condition Specified Condition Battery positive (+) → Terminal 2 (STP)
Battery negative (-) → Terminal 6 (E)Stop light comes on Battery positive (+) → Terminal 3 (TL)
Battery negative (-) → Terminal 6 (E)Taillight and rear side marker light come on Battery positive (+) → Terminal 4 (TRN)
Battery negative (-) → Terminal 6 (E)Turn signal light comes on If the result is not as specified, repair or replace the rear combination light socket and wire sub-assembly RH.
