Removal [04/2013 - 08/2015]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR LIGHT COVER
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 6 claws to remove the 2 rear light covers.

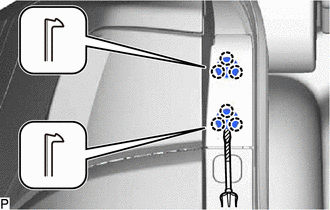

      GTY459709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
  2. REMOVE REAR COMBINATION LIGHT ASSEMBLY
    1. Apply protective tape around the rear combination light assembly as shown in the illustration.

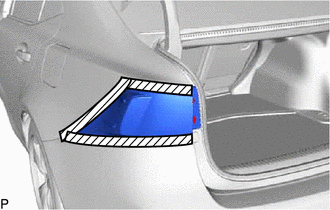

      GTY464220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the 2 screws.

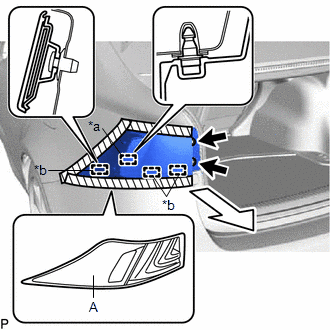

      GTY459208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
    3. Push the rear combination light assembly toward the rear of the vehicle to disengage the pin.
      NOTE:

      To prevent the rear combination light assembly from springing out and falling when it is disengaged, place your hand on the rear combination light assembly and press down gently.

      HINT:

      Pushing on the portion A in the illustration toward the rear of the vehicle will make disengagement of the pin easier.

    4. Disengage the 3 guides to disconnect the rear combination light assembly as shown in the illustration.
    5. Turn the rear combination light socket and wire sub-assembly with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.

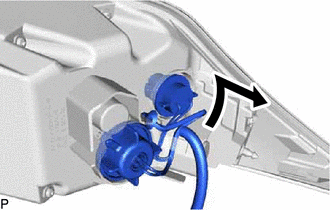

      GTY461357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Turn the cap as shown in the illustration to disconnect it.

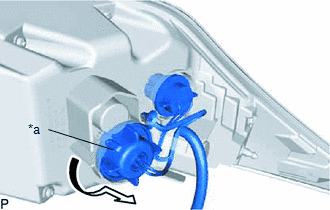

      GTY462013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cap
    7. Disconnect the connector to remove the rear combination light assembly.
  3. REMOVE REAR TURN SIGNAL LIGHT BULB
    1. Remove the rear turn signal light bulb from the rear combination light socket and wire sub-assembly.
  4. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [04/2013 - 10/2016]

  5. REMOVE REAR BUMPER UPPER RETAINER
    1. Disengage the clamp.

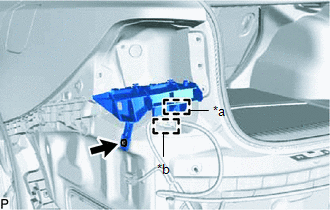

      GTY459375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide
      *b Clamp
    2. Remove the screw.
    3. Disengage the guide to remove the rear bumper upper retainer.
  6. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 4

  7. REMOVE SPARE WHEEL COVER TRAY LH

    Refer to PROCEDURE - Step 5

  8. REMOVE SPARE WHEEL COVER TRAY RH

    Refer to PROCEDURE - Step 6

  9. REMOVE DECK SIDE TRIM BOX LH

    Refer to PROCEDURE - Step 7

  10. REMOVE DECK SIDE TRIM BOX RH

    Refer to PROCEDURE - Step 8

  11. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 9

  12. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    for Fixed Seat Type: Refer to PROCEDURE - Step 10

    for Fold Down Seat Type: Refer to PROCEDURE - Step 11

  13. REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)

    Refer to REMOVAL [04/2013 - 08/2015]

  14. REMOVE REAR SEAT ASSEMBLY (for Fold Down Seat Type)

    Refer to REMOVAL [04/2013 - 10/2016]

  15. REMOVE REAR SEAT SUB FLOOR PANEL (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 11

  16. REMOVE NO. 2 ROOM PARTITION COVER (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 12

  17. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  18. REMOVE FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 18

  19. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 19

  20. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH (for RH Side)

    Refer to PROCEDURE - Step 20

  21. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
    1. Disconnect the connector.

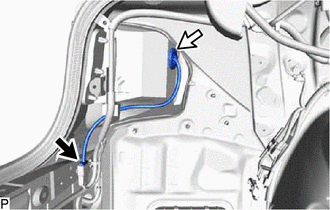

      GTY461353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the grommet to remove the rear combination light socket and wire sub-assembly.
