Components [09/2020 - ]
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

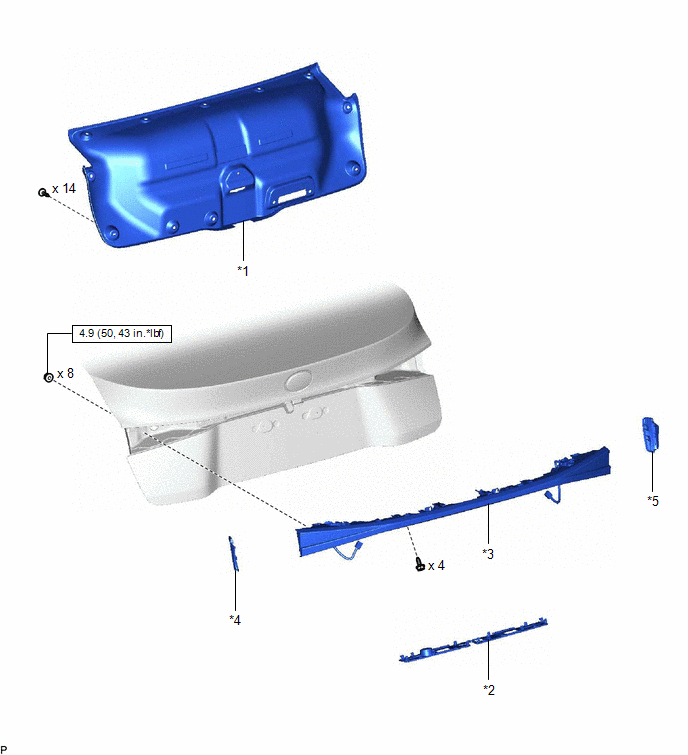

| *1 |
LUGGAGE COMPARTMENT DOOR COVER |
*2 |
NO. 3 OUTSIDE LUGGAGE COMPARTMENT DOOR GARNISH |
| *3 |
REAR LIGHT ASSEMBLY |
*4 |
REAR LIGHT COVER LH |
| *5 |
REAR LIGHT COVER RH |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

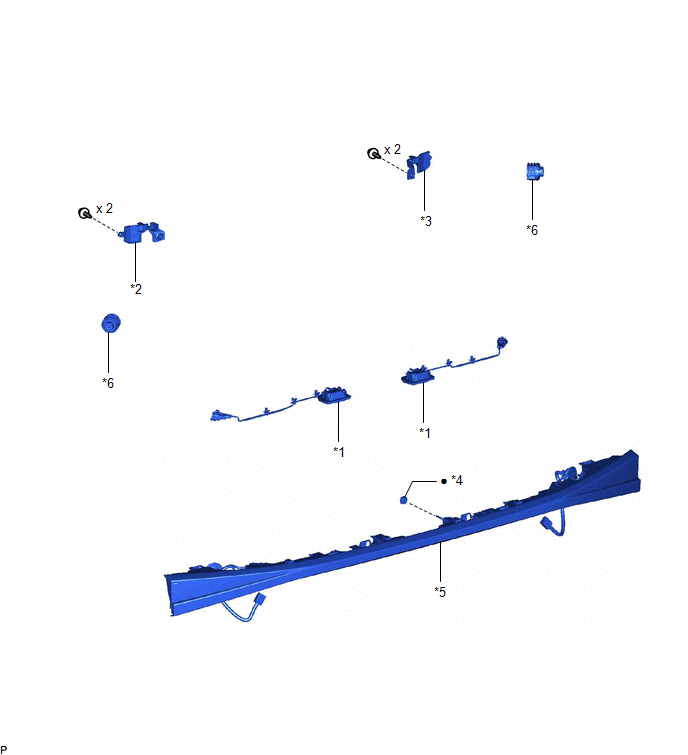

| *1 |
LICENSE PLATE LIGHT ASSEMBLY |
*2 |
REAR LIGHT BRACKET LH |
| *3 |
REAR LIGHT BRACKET RH |
*4 |
REAR LIGHT GASKET |
| *5 |
REAR LIGHT LENS AND BODY |
*6 |
TAIL LIGHT LED |
| • |
Non-reusable part |
- |
- |
