Disassembly [04/2013 - 10/2016]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BACK-UP LIGHT BULB
    1. Type A:

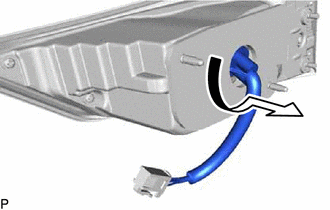

      GTY469661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.
      2. Remove the back-up light bulb from the rear light socket and wire.
    2. Type B:

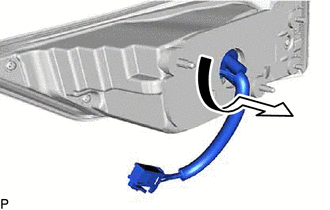

      GTY515118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.
      2. Remove the back-up light bulb from the rear light socket and wire.
  2. REMOVE REAR LIGHT GASKET
    1. Type A:
      GTY461336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the rear light gasket.
        NOTE:
        • Be sure to remove all traces of the old rear light gasket from the vehicle body.
        • Do not reuse the removed rear light gasket. Be sure to install a new rear light gasket to prevent water ingress.
    2. Type B:
      GTY521374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the rear light gasket.
        NOTE:
        • Be sure to remove all traces of the old rear light gasket from the vehicle body.
        • Do not reuse the removed rear light gasket. Be sure to install a new rear light gasket to prevent water ingress.
  3. REMOVE REAR LIGHT SOCKET AND WIRE
    1. Disconnect the connector to remove the rear light socket and wire.
      GTY469660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR LIGHT GASKET
    1. Type A:
      GTY461342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 rear light gaskets.
        NOTE:
        • Be sure to remove all the traces of the old rear light gasket from the vehicle body.
        • Do not reuse the removed rear light gasket. Be sure to install new rear light gasket to prevent water ingress.
    2. Type B:
      GTY515113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 rear light gaskets.
        NOTE:
        • Be sure to remove all the traces of the old rear light gasket from the vehicle body.
        • Do not reuse the removed rear light gasket. Be sure to install new rear light gasket to prevent water ingress.
