Inspection [04/2013 - 09/2020]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH
    1. Apply battery voltage to the side turn signal light LH and check that the light comes on.

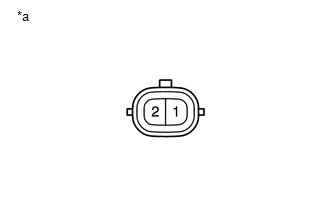

      GTY448081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Side Turn Signal Light Assembly LH)

      OK

      Condition Specified Condition
      Battery positive (+) → Terminal 1
      Battery negative (-) → Terminal 2      		 Side turn signal light LH comes on

      If the result is not as specified, replace the side turn signal light assembly LH.

  2. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY RH
    1. Apply battery voltage to the side turn signal light RH and check that the light comes on.
      GTY448081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Side Turn Signal Light Assembly RH)

      OK

      Condition Specified Condition
      Battery positive (+) → Terminal 1
      Battery negative (-) → Terminal 2      		 Side turn signal light RH comes on

      If the result is not as specified, replace the side turn signal light assembly RH.
