Installation [09/2020 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY
    1. Engage the 2 guides.
    2. Install the visor cover B to the side turn signal light assembly with the screw.
    3. w/ Panoramic View Monitor System:

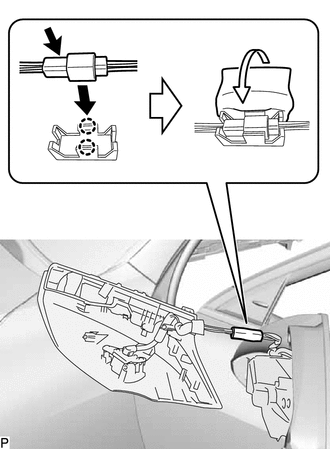

      1. Connect the side television camera connector.
        GTY967022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Engage the 2 claws as shown in the illustration to install the camera connector clamp.
      3. Paste a new outer mirror tape around the camera connector clamp.
      4. Engage the clamp.

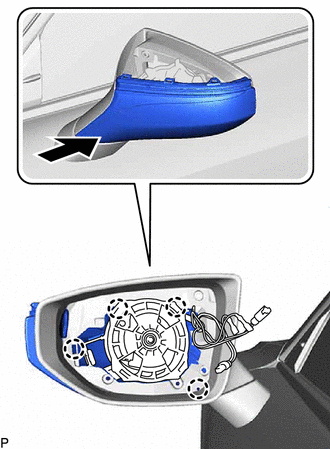

    4. Engage the 4 claws to install the visor cover B as shown in the illustration.
      GTY967140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

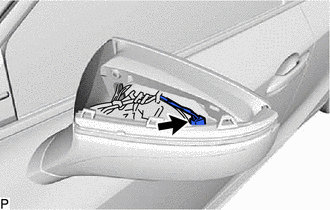

    5. Connect the connector.
      GTY967138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

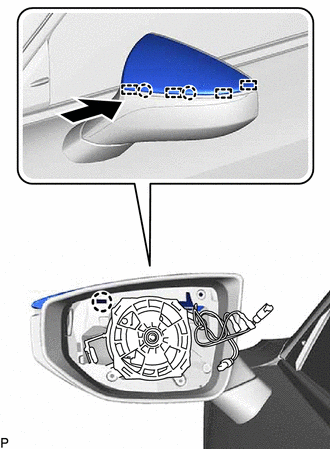

    6. Engage the 4 guides and 3 claws to install the visor cover A as shown in the illustration.
      GTY967136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the No. 2 outer mirror cover with the 4 screws.
  2. INSTALL OUTER MIRROR

    Refer to PROCEDURE - Step 1 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - ]

  3. PERFORM CALIBRATION (w/ Panoramic View Monitor System)

    Refer to CALIBRATION [09/2020 - ]
