Removal [04/2013 - 09/2020]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE OUTER MIRROR

    Refer to PROCEDURE - Step 1

  2. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

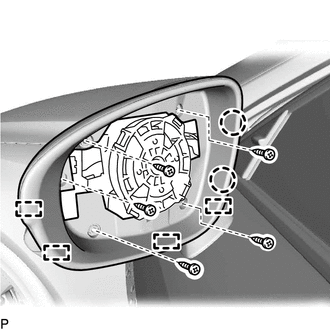

    1. Remove the 5 screws.
      GTY458074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and 4 guides to remove the visor assembly.

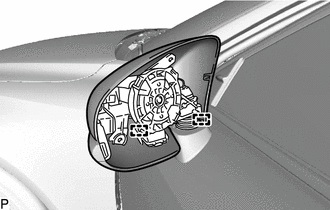

    3. Disengage the 2 guides.
      GTY468952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

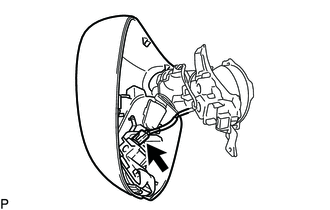

    4. Disconnect the connector to remove the No. 2 outer mirror cover with side turn signal light assembly.
      GTY468413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

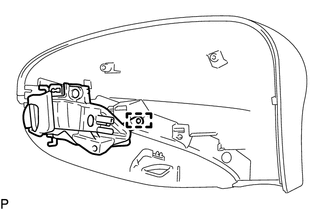

    5. Disengage the guide to remove the side turn signal light assembly from the No. 2 outer mirror cover.
      GTY415762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
