Installation [04/2013 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL STOP LIGHT SWITCH ASSEMBLY

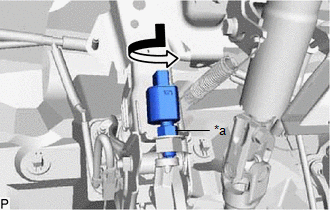

Temporarily install the stop light switch assembly with the stop light switch lock nut as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Stop Light Switch Lock Nut

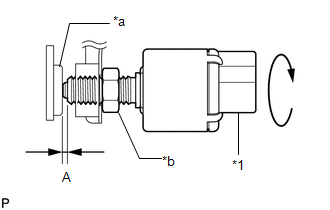

Turn the stop light switch assembly so that the clearance between the end of the threads and cushion is within A.

*1	Stop Light Switch Assembly
*a	Cushion
*b	Stop Light Switch Lock Nut

Part	Measurement
A	0.87 to 2.4 mm (0.0343 to 0.0945 in.)

Tighten the stop light switch lock nut.
Torque: 17 N*m (173 kgf*cm, 13 ft.*lbf)
Connect the connector.

INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 36 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 37 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 37 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 35 [09/2020 - ]
