Terminals Of Ecu [04/2013 - 09/2022]
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

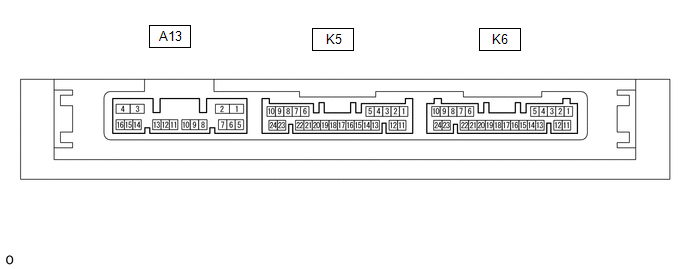

- Disconnect the K6 and A13 certification ECU (smart key ECU assembly) connectors.
- Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
Tester Connection Input/Output Wiring Color Terminal Description Condition Specified Condition Related Data List Item A13-12 (STA) - Body ground Input R - Body ground When starting the engine, this monitors the voltage sent from terminal STAR to the starter relay to judge whether the engine is "being started". 20°C (68°F) 106.78 to 115.98 Ω - A13-10 (STAR) - Body ground Input/Output L - Body ground Outputs voltage to the starter relay - Outputs voltage (12 V) to the starter relay when starting the engine. (Max. 30 sec. Turns off when an engine speed of 500 rpm or more continues for 500 ms or more.)
HINT:
When Hi is selected, a start request signal (STAR) will not be output even though a start request signal (STSW) is input.Shift lever in any position other than P or N → Shift lever in P or N (at 20°C (68°F)) 10 kΩ or higher → 107.05 to 116.33 Ω - Receives neutral start switch (P, N position detection) signal - Monitors whether the neutral start switch is on (P or N) or off (other than P or N). Applies voltage via a resistor (large) in the certification ECU (smart key ECU assembly). When the neutral start switch is on, due to the starter relay coil resistance (small) using some of the voltage, the voltage at terminal STAR will be low (2.7 V or less), and when the neutral start switch is off, the voltage will be high (9 V or more).
Perform the following operations except while the engine is cranking: - Shift lever in any position other than P or N → Shift lever in P or N (at 20°C (68°F))
30 kΩ or higher → 107.05 to 116.33 Ω Neutral SW/ Clutch SW A13-14 (NE) - Body ground Input B - Body ground Engine speed signal Always 10 kΩ or higher Engine Condition A13-2 (STP1) - Body ground Input R - Body ground Stop light switch signal Brake pedal depressed → Brake pedal released 9 V or higher → 1 V or less Stop Light Switch1 K6-10 (+B) - K6-11 (E) Input BE - BR Power source Always 11 to 14 V - K6-23 (SLP) - K6-11 (E) Input R - BR Steering lock position signal Steering locked 10 kΩ or higher Steering Unlock Switch K6-22 (P) - K6-11 (E) Input LG - BR P position signal Shift lever in P → Shift lever not in P 30 kΩ or higher → Below 200 Ω Shift P Signal K6-11 (E) - Body ground - BR - Body ground GND Always Below 1 Ω - K6-18 (SSW2) - Body ground Input L - Body ground SSW2 contact signal
HINT:
Backup for SSW1. Behaves the same way as SSW1.Engine switch pushed → Engine switch not pushed Below 15 Ω → 10 kΩ or higher Start Switch2 K6-16 (SSW1) - Body ground Input GR - Body ground SSW1 contact signal Engine switch pushed → Engine switch not pushed Below 15 Ω → 10 kΩ or higher Start Switch1 K6-9 (ACCD) - Body ground Output P - Body ground ACC signal 20°C (68°F) 130.92 to 190.74 Ω ACC Relay Monitor A13-3 (IG1D) - Body ground Output V - Body ground IG signal 20°C (68°F) 87.32 to 127.14 Ω IG Relay Monitor (Outside) K6-5 (SPD) - Body ground Input L - Body ground Vehicle speed signal Always 30 kΩ or higher Vehicle Speed Signal - Reconnect the K6 and A13 certification ECU (smart key ECU assembly) connectors.
- Measure the voltage and check for pulses according to the value(s) in the table below.
Tester Connection Input/Output Wiring Color Terminal Description Condition Specified Condition Related Data List Item A13-12 (STA) - K6-11 (E) Input R - BR When starting the engine, this monitors the voltage sent from terminal STAR to the starter relay to judge whether the engine is "being started". With the brake pedal depressed, the engine switch is pressed and held (starter on) → After approx. 1 sec. has elapsed, the engine switch is released (starter off) 6 V or higher* → 1.0 V or less - A13-10 (STAR) - K6-11 (E) Input/Output L - BR Outputs voltage to the starter relay - Outputs voltage (12 V) to the starter relay when starting the engine. (Max. 30 sec. Turns off when an engine speed of 500 rpm or more continues for 500 ms or more.)
HINT:
When Hi is selected, a start request signal (STAR) will not be output even though a start request signal (STSW) is input.With the brake pedal depressed, the engine switch is pressed and held → After approx. 1 sec. has elapsed, the engine switch is released 6 V or higher* → 1.0 V or less - Receives neutral start switch (P, N position detection) signal - Monitors whether the neutral start switch is on (P or N) or off (other than P or N). Applies voltage via a resistor (large) in the certification ECU (smart key ECU assembly). When the neutral start switch is on, due to the starter relay coil resistance (small) using some of the voltage, the voltage at terminal STAR will be low (2.7 V or less), and when the neutral start switch is off, the voltage will be high (9 V or more).
Perform the following operations except while the engine is cranking: - Shift lever in any position other than P or N → Shift lever in P or N (at 20°C (68°F))
9 V or higher → 2.7 V or less Neutral SW/ Clutch SW A13-14 (NE) - K6-11 (E) Input B - BR Engine speed signal Idling (engine warmed up) Pulse generation
(See waveform 1)Engine Condition A13-2 (STP1) - K6-11 (E) Input R - BR Stop light switch signal Brake pedal released → Brake pedal depressed 1 V or less → 9 V or higher Stop Light Switch1 K6-23 (SLP) - K6-11 (E) Input R - BR Steering lock position signal Steering locked → Steering unlocked 11 to 14 V → 1.5 V or less Steering Unlock Switch K6-24 (SLR+) - K6-11 (E) Output W - BR Steering lock motor operation command signal
(Steering lock motor operation permission signal sent from the certification ECU (smart key ECU assembly))When a door is opened, the steering lock motor will be operated if all of the following conditions are met: - The steering is unlocked.
- The engine switch is off.
- The shift lever is in P.
Pulse generation
(See waveform 2)- K6-22 (P) - K6-11 (E) Input LG - BR P position signal Shift lever in P → Shift lever not in P 9 V or higher → 2.76 V or less Shift P Signal K6-18 (SSW2) - K6-11 (E) Input L - BR SSW2 contact signal
HINT:
Backup for SSW1. Behaves the same way as SSW1.Engine switch not pushed → Engine switch pushed 9 V or higher → 1 V or less Start Switch2 K6-16 (SSW1) - K6-11 (E) Input GR - BR SSW1 contact signal Engine switch not pushed → Engine switch pushed 9 V or higher → 1 V or less Start Switch1 K6-9 (ACCD) - K6-11 (E) Output P - BR ACC signal Engine switch off → Engine switch on (ACC) 1 V or less → 8.5 V or higher ACC Relay Monitor A13-3 (IG1D) - K6-11 (E) Output V - BR IG signal Engine switch on (ACC) → Engine switch on (IG) 1 V or less → 9 V or higher IG Relay Monitor (Outside) K6-5 (SPD) - K6-11 (E) Input L - BR Vehicle speed signal Vehicle being driven at approx. 5 km/h (3 mph) Pulse generation
(See waveform 3)Vehicle Speed Signal HINT:
- *: While the engine is cranking, the battery voltage may drop to approximately 6 V.
- The waveform of the steering lock actuator motor stopped can be checked without performing any particular operation.
- The waveform of the steering lock actuator motor operating can be checked if either of the following operations is performed:
- To unlock the steering, bring the electrical key transmitter sub-assembly into the cabin and turn the engine switch on (ACC) or on (IG).
- To lock the steering, open a door with the engine switch off and the shift lever in P.
- Using an oscilloscope, check the waveform of the ECU.NOTE:
The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.
- Waveform 1
Item Content Tester Connection A13-14 (NE) - K6-11 (E) Tool Setting 2 V/DIV., 2 ms./DIV. Condition Idling (engine warmed up) HINT:
The wavelength becomes shorter as the engine speed increases.
- Waveform 2
*a Steering lock motor not operating *b Steering lock motor operating Item Content Tester Connection K6-24 (SLR+) - K6-11 (E) Tool Setting 2 V/DIV., 200 ms./DIV. Condition Steering lock motor stopped → Steering lock motor operating → Steering lock motor stopped - Waveform 3
Item Content Tester Connection K6-5 (SPD) - K6-11 (E) Tool Setting 5 V/DIV., 20 ms./DIV. Condition Vehicle being driven at approx. 5 km/h (3 mph) HINT:
The wavelength becomes shorter as the vehicle speed increases.
- Waveform 1
- CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY)
Refer to TERMINALS OF ECU [04/2013 - 08/2015] , or refer to TERMINALS OF ECU [08/2015 - 10/2017] , or refer to TERMINALS OF ECU [10/2017 - 11/2021] , or refer to TERMINALS OF ECU [11/2021 - 09/2022]
- CHECK ID CODE BOX (IMMOBILISER CODE ECU)
Refer to TERMINALS OF ECU [04/2013 - 08/2015] , or refer to TERMINALS OF ECU [08/2015 - 10/2017] , or refer to TERMINALS OF ECU [10/2017 - 11/2021] , or refer to TERMINALS OF ECU [11/2021 - 09/2022]
- CHECK ECM
Refer to TERMINALS OF ECU [04/2013 - 08/2015] , or refer to TERMINALS OF ECU [08/2015 - 10/2017] , or refer to TERMINALS OF ECU [10/2017 - 11/2021] , or refer to TERMINALS OF ECU [11/2021 - 09/2022]
- CHECK ENGINE SWITCH
Refer to TERMINALS OF ECU [04/2013 - 08/2015] , or refer to TERMINALS OF ECU [08/2015 - 10/2017] , or refer to TERMINALS OF ECU [10/2017 - 11/2021] , or refer to TERMINALS OF ECU [11/2021 - 09/2022]
