Components [03/2017 - ]

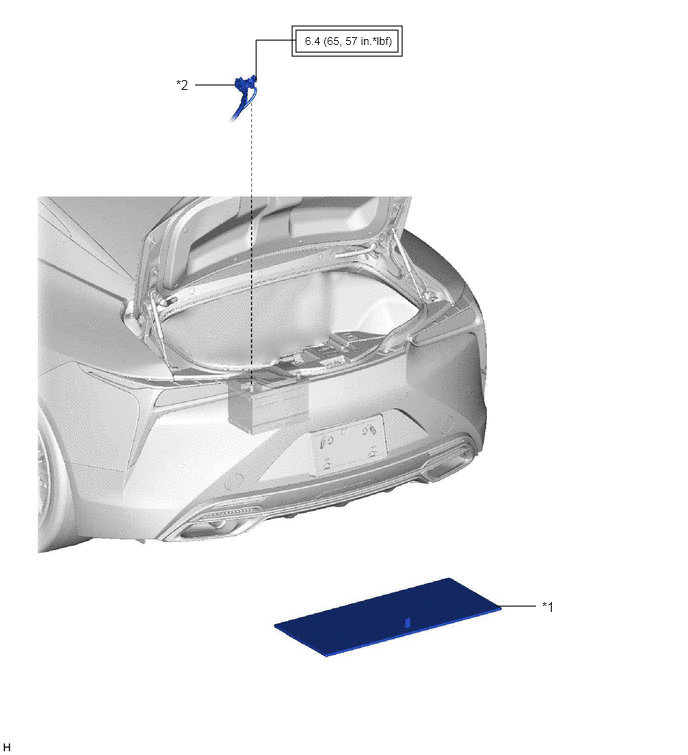

Fig 1: Steering Control ECU Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 2 DECK BOARD	*2	NEGATIVE BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	-	-

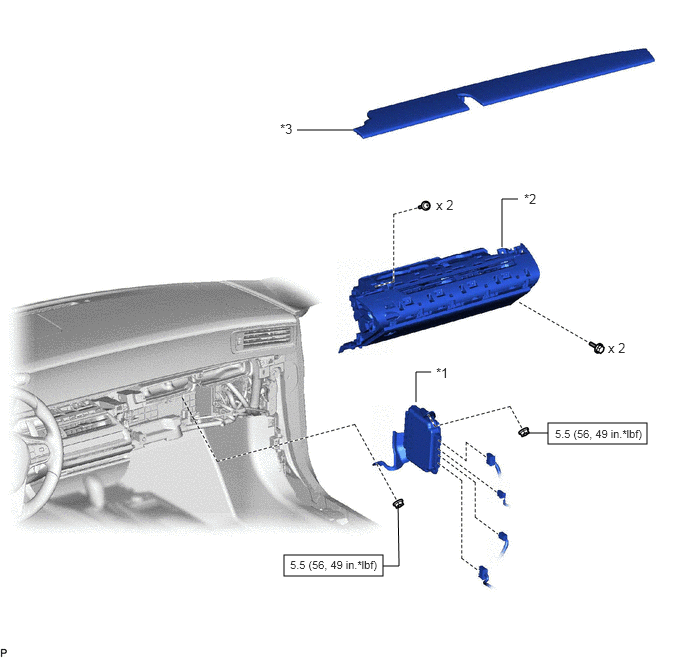

Fig 2: Steering Control ECU Replacement Components With Torque Specifications (2 Of 2)

*1	FRONT STEERING CONTROL ECU	*2	GLOVE COMPARTMENT DOOR ASSEMBLY
*3	NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
