Installation [10/2020 - 10/2023]: Procedure

WARNING: This page is about a different car, the 2024 Lexus LS 500, 2023 Lexus LS 500, 2022 Lexus LS 500, and 2021 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL DRIVING SUPPORT ECU ASSEMBLY
    NOTE:

    Do not use a driving support ECU if it has been dropped or has been subjected to any strong impact.

    1. Install the driving support ECU in the direction of the arrow shown in the illustration and attach the hook.

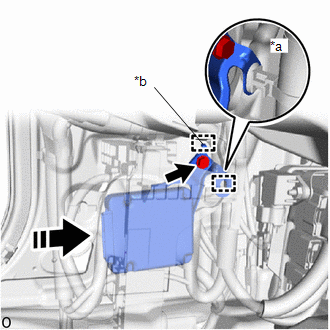

      GTY776145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wire Harness Clamp
      *b Hook
      Install in this Direction
      NOTE:

      Do not use a driving support ECU if it has been dropped or has been subjected to any strong impact.

      1. Attach the wire harness clamp.
    2. Install the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    3. Attach the wire harness clamp.
    4. Attach the clip as shown in the illustration to install the connector holder.

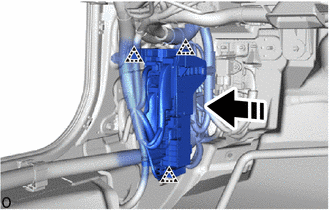

      GTY828825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    5. Connect the connector.
  2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 34 [10/2022 - 10/2023]

  3. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 36 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 35 [10/2022 - 10/2023]

  4. INSTALL COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 34 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 33 [10/2022 - 10/2023]

  5. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 42 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 42 [11/2021 - 10/2023]

  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  7. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

    Refer to WORK PROCEDURE [10/2020 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - 10/2023]

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function thatcompletes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [10/2020 - 10/2023]

  8. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11
