Installation [12/2017 - ]: Procedure

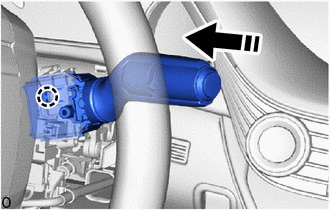

1. Attach the claw and install the windshield wiper switch assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

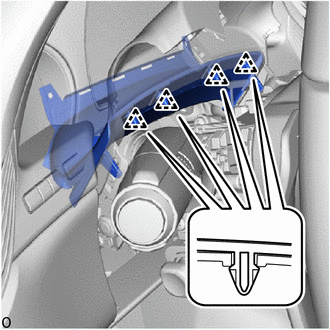

1. Attach the clip and install the upper steering column cover to the meter hood spacer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

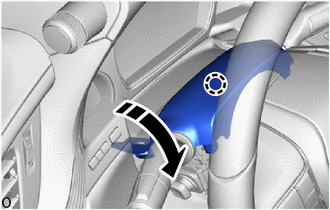

2. Attach the claw and install the upper steering column cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

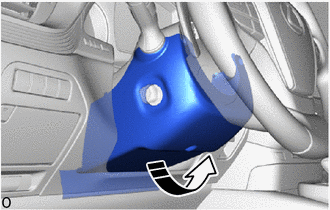

1. Push the lower steering column cover in the direction of the arrow shown in the illustration to install it, taking care not to catch the tilt and telescopic switch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

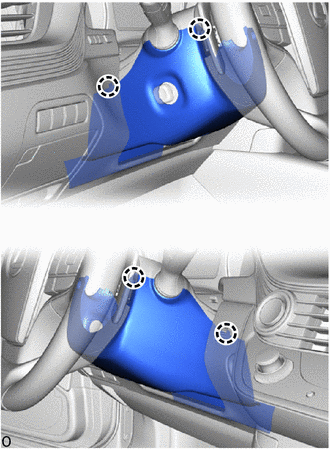

2. Attach the claw as shown in the illustration.
   NOTE:

   Check that the claw is securely engaged.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Install the screw.
4. Turn the steering wheel assembly 90° to the left from the straight condition and install the screw.
5. Turn the steering wheel assembly 90° to the right from the straight condition and install the screw.

Refer to PROCEDURE - Step 21 [12/2017 - 09/2019] , or refer to PROCEDURE - Step 21 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 21 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 20 [10/2023 - ]
