System Diagram [12/2017 - ]

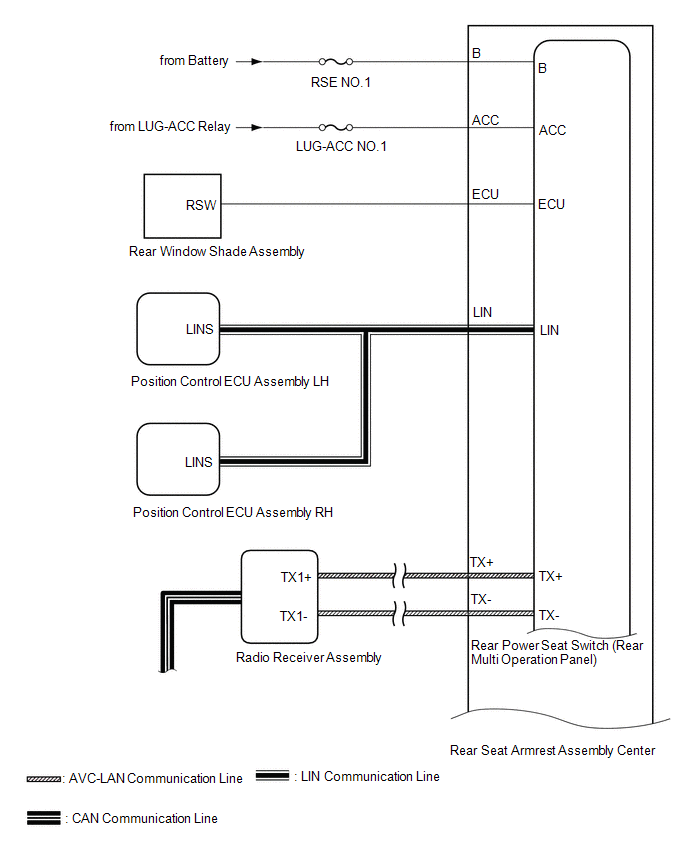

    Fig 1: Rear Multi Operation Panel System Diagram (1 Of 2)
    GTY791804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

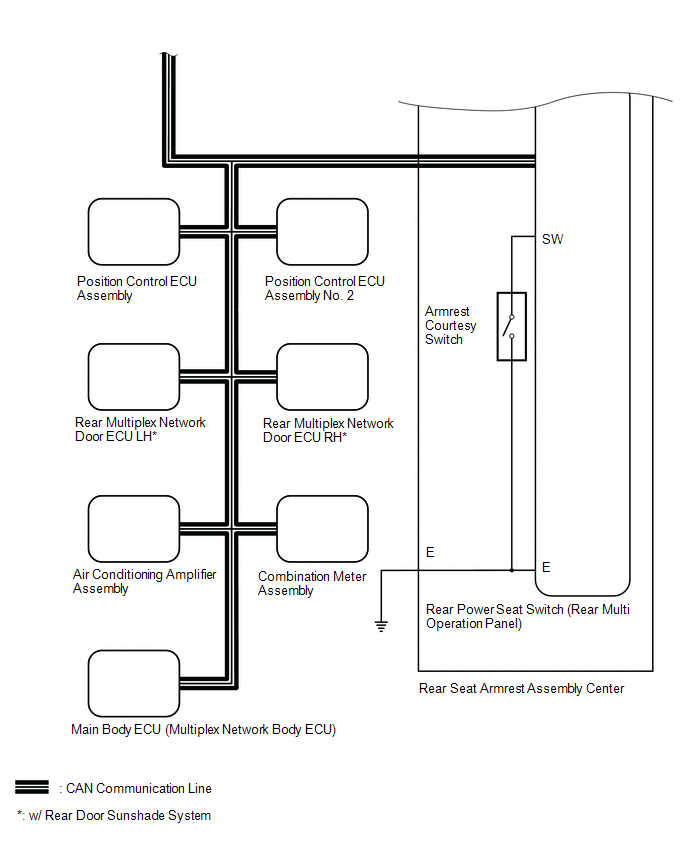

    Fig 2: Rear Multi Operation Panel System Diagram (2 Of 2)
    GTY798197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
