Brake Control System - Service Information (2 Of 2)
>>
Steering Angle Sensor
>>
Components [12/2017 - 10/2023]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components [12/2017 - 10/2023]

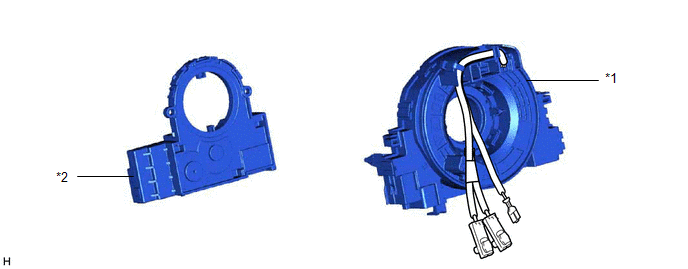

Fig 1: Steering Angle Sensor Replacement Components [12/2017 - 10/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY
*2
STEERING SENSOR
