Installation [12/2017 - 10/2023]: Procedure

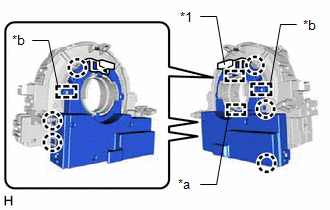

1. Align the 2 pins and 2 guides, and engage the 6 claws to install the steering sensor to the spiral cable sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Lock Pin
   *a	Guide
   *b	Pin

   NOTE:

   • Do not remove the lock pin before the steering sensor is installed to the spiral cable sub-assembly.
   • Do not damage the pins of the spiral cable sub-assembly and guides of the steering sensor.
   • The spiral cable sub-assembly can be rotated up to 30° even when the interlock is engaged. Therefore, make sure that both guides are aligned properly when installing the steering sensor to the spiral cable sub-assembly.

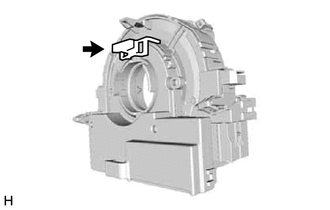

2. Remove the lock pin from the steering sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 2 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - 10/2023]

Refer to INSTALLATION [12/2017 - 10/2020] , or refer to INSTALLATION [10/2020 - 10/2023]
