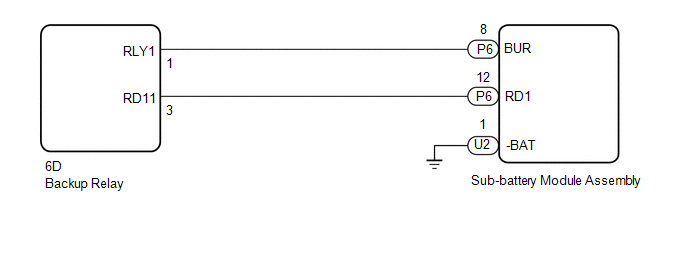

DTC B2303: Communication Error from Backup Relay (BURDIAG1) to Sub Battery Module [12/2017 - 10/2023]: Wiring Diagram

GTY969950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
