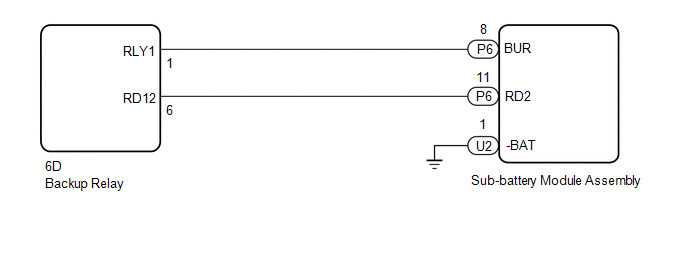

DTC B2304: Communication Error from Backup Relay (BURDIAG2) to Sub Battery Module [12/2017 - 10/2023]: Wiring Diagram

GTY969913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
