DTC B264F: Easy Access Buckle Sensor Malfunction [12/2017 - 10/2023]: Wiring Diagram

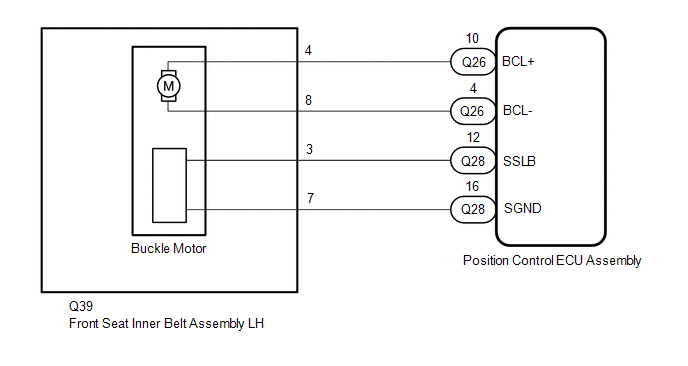

  1. for Driver Side
    GTY790709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

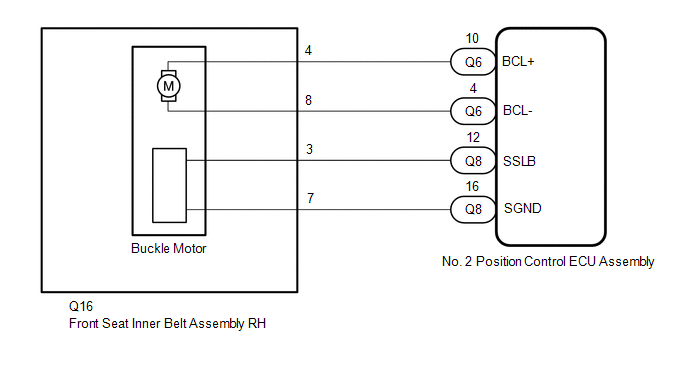

  2. for Front Passenger Side
    GTY790712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
