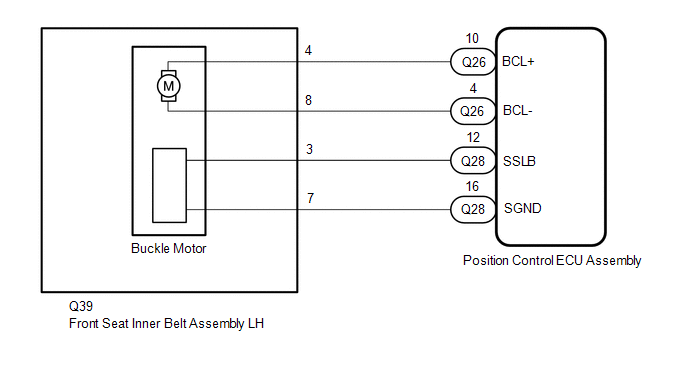

DTC B264F-96: Easy Access Buckle Sensor (Motor) Component Internal Failure [10/2023 - ]: Wiring Diagram

  1. GTY1234683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
