Pattern Select Switch EV Mode Circuit [10/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.

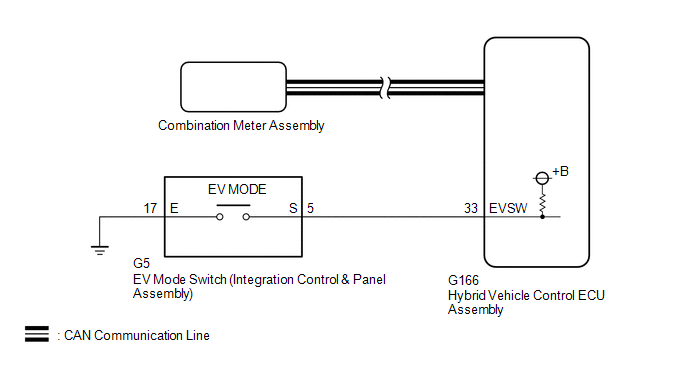

GTY1085765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
