Pattern Select Switch Sport Mode Circuit [10/2023 - ]: Procedure
- READ VALUE USING TECHSTREAM (CAN BUS CHECK)
See step 2
Result
Proceed to A B Result:
B
GO TO CAN COMMUNICATION SYSTEM
w/ Front LiDAR Sensor: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2023 - ]
w/o Front LiDAR Sensor: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2023 - ]
Result:
A
See step 2
- CHECK DTC OUTPUT (HEALTH CHECK)
See step 3
Result
Proceed to A B Result:
B
GO TO DTC CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2023 - ]
Result:
A
See step 3
- READ VALUE USING TECHSTREAM (SPORT MODE SWITCH)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Hybrid Control / Data List / Sport Mode Switch.
Powertrain > Hybrid Control > Data List
Tester Display Sport Mode Switch - Read the value displayed on the Techstream.
Powertrain > Hybrid Control > Data List
Tester Display Measurement Item Range Normal Condition Sport Mode Switch Sport mode switch (satellite switch set) condition ON or OFF Sport mode switch (satellite switch set) not operated: OFF
Sport mode switch (satellite switch set) being pushed and held: ONResult
Result Proceed to The display changes according to the sport mode switch (satellite switch set) operation. A The display does not change according to the sport mode switch (satellite switch set) operation. B - Turn the power switch off.
Result:
A
GO TO PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [10/2023 - ]
Result:
B
See step 4
- INSPECT SPORT MODE SWITCH (SATELLITE SWITCH SET)
- Inspect the sport mode switch (satellite switch set).
Refer to INSPECTION [10/2017 - ]
Result
Proceed to OK NG
Result:
NG
REPLACE SPORT MODE SWITCH (SATELLITE SWITCH SET). Refer to REMOVAL [10/2017 - ]
Result:
OK
See step 5
- Inspect the sport mode switch (satellite switch set).
- CHECK HARNESS AND CONNECTOR (SPORT MODE SWITCH (SATELLITE SWITCH SET) - BODY GROUND)
- Disconnect the G49 sport mode switch (satellite switch set) connector.
- Measure the resistance according to the value(s) in the table below.

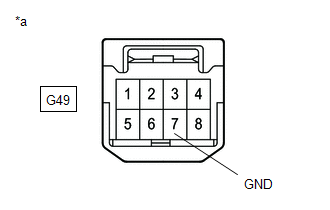

*a Front view of wire harness connector
(to Sport Mode Switch (Satellite Switch Set))Standard Resistance
Tester Connection Condition Specified Condition G49-7 (GND) - Body ground Power switch off Below 1 Ω - Reconnect the G49 sport mode switch (satellite switch set) connector.
Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6

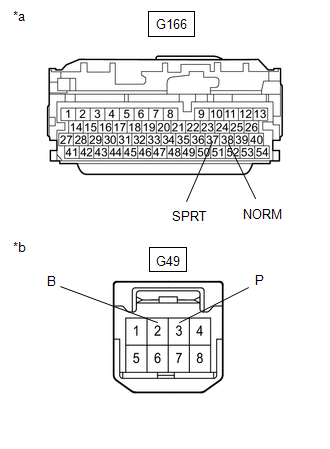

- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY - SPORT MODE SWITCH (SATELLITE SWITCH SET))
- Disconnect the G166 hybrid vehicle control ECU assembly connector.
- Disconnect the G49 sport mode switch (satellite switch set) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G166-37 (SPRT) - G49-3 (P) Power switch off Below 1 Ω G166-37 (SPRT) or G49-3 (P) - Body ground Power switch off 10 kΩ or higher G166-38 (NORM) - G49-2 (B) Power switch off Below 1 Ω G166-38 (NORM) or G49-2 (B) - Body ground Power switch off 10 kΩ or higher - Reconnect the G49 sport mode switch (satellite switch set) connector.
- Reconnect the G166 hybrid vehicle control ECU assembly connector.
Result
Proceed to OK NG
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to REMOVAL [10/2023 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
