Removal [10/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. AIR SUSPENSION CONTROL PROHIBITED (w/ Air Suspension)

    Refer to PRECAUTION [10/2017 - ]

  2. DRAIN TRANSFER OIL

    Refer to PROCEDURE - Step 2

  3. REMOVE TRANSMISSION UNDER COVER

    Refer to PROCEDURE - Step 24 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 24 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 24 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 24 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 24 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 19 [10/2023 - ]

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 25 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 25 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 25 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 25 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 25 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 25 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 20 [10/2023 - ]

  5. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to REMOVAL [10/2017 - ]

  6. REMOVE FRONT PROPELLER SHAFT ASSEMBLY

    Refer to REMOVAL [10/2017 - ]

  7. REMOVE REAR ENGINE MOUNTING INSULATOR

    Refer to PROCEDURE - Step 24 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 24 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 24 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 24 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 24 [10/2023 - ]

  8. REMOVE TRANSFER ASSEMBLY
    1. GTY786725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 transfer assembly installation bolts.

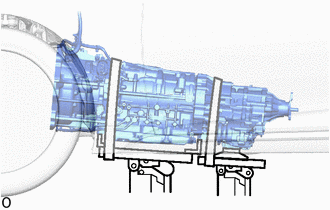

    2. Using a transmission jack, support the hybrid vehicle transmission assembly.
      GTY785343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WARNING:

      Be sure to perform this procedure with several people as the transfer assembly is very heavy.

    3. Slightly tilt the hybrid vehicle transmission assembly.
      NOTE:

      Make sure that the cooling fan and fan shroud do not contact the engine assembly when tilting the automatic transmission assembly.

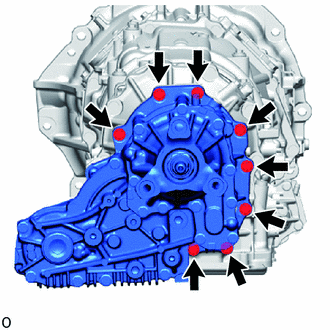

    4. GTY786723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 8 bolts and transfer assembly.

      NOTE:
      • Be careful not damage the transfer front case oil seal.
      • Be careful not to drop the transfer assembly.
      • Make sure there are no oil leaks.
