Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [09/2015 - ]: Procedure

1. Check for DTCs. Refer to DTC CHECK / CLEAR [09/2015 - ] .
   RESULT



   Result	Proceed to
   DTC is not output	A
   B2311 is output	B
   B2312 is output	C
   B2313 is output	D
   LIN communication system DTCs are output	E

Result:

B

GO TO DTC B2311

Refer to DTC B2311: Power Window Motor Malfunction [09/2015 - ] )

Result:

C

GO TO DTC B2312

Refer to DTC B2312: Power Window Switch Malfunction [09/2015 - ] )

Result:

D

GO TO DTC B2313

Refer to DTC B2313: Glass Position Initialization Incomplete [09/2015 - ] )

Result:

E

GO TO LIN COMMUNICATION SYSTEM

Refer to DIAGNOSTIC TROUBLE CODE CHART [09/2015 - ] )

Result:

A

See step  2

1. Check that the front passenger side door power window moves when the manual up/down function of the power window regulator switch is operated. Refer to OPERATION CHECK [09/2015 - ] .

   OK

   Front passenger side door power window moves.

Result:

NG

OTHER PROBLEM (GO TO PROBLEM SYMPTOMS TABLE)

Refer to Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [09/2015 - ] )

Result:

OK

See step  3

1. Use the Data List to check if the power window regulator motor is functioning properly. Refer to DATA LIST / ACTIVE TEST [09/2015 - ] .
   P-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   P Door P/W Auto SW	Front passenger side power window auto up/down signal / ON or OFF	ON: Front passenger side power window auto up/down switch operated OFF: Power window regulator switch not operated	-

   OK

   Techstream display changes according to operation of power window regulator switch.

Result:

OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

Refer to REMOVAL [09/2015 - ] )

Result:

NG

See step  4

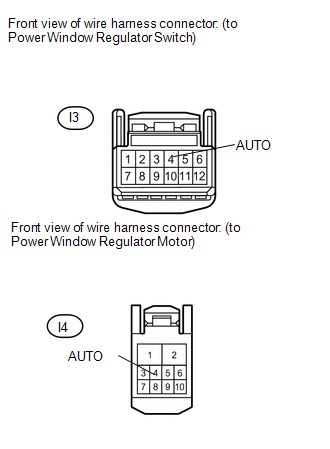

1. Disconnect the I3 switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the I4 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I3-4 (AUTO) - I4-4 (AUTO)	Always	Below 1 Ω
   I3-4 (AUTO) or I4-4 (AUTO) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

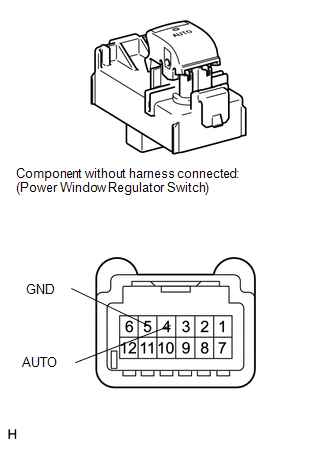

1. Remove the power window regulator switch. Refer to REMOVAL [09/2015 - ] .
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   I3-4 (AUTO) - I3-5 (GND)	Auto up/down operation	Below 1 Ω

Result:

OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

Refer to REMOVAL [09/2015 - ] )

Result:

NG

REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY

Refer to REMOVAL [09/2015 - ] )
