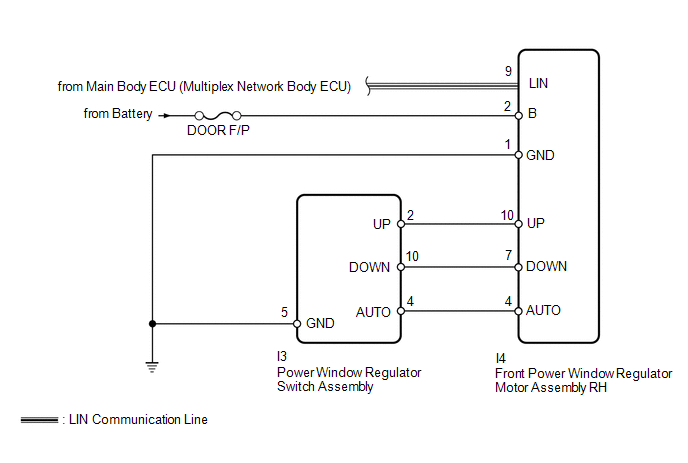

Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [09/2015 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
