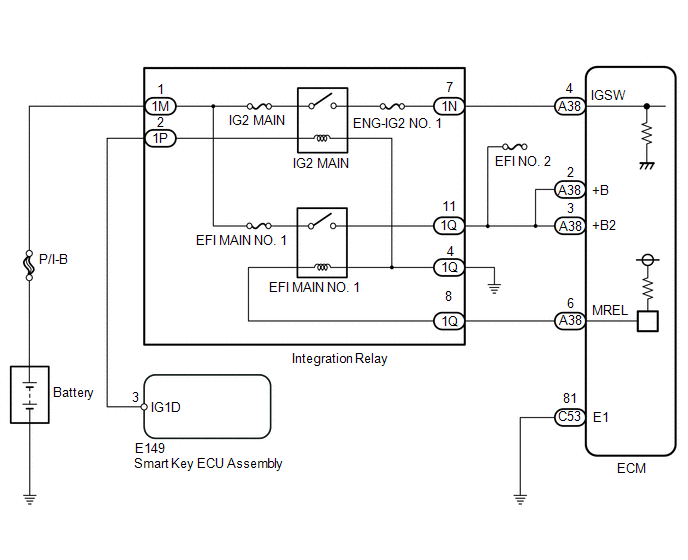

ECM Power Source Circuit [09/2015 - ]: Wiring Diagram

GTY947622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
