Components [10/2014 - 09/2017]

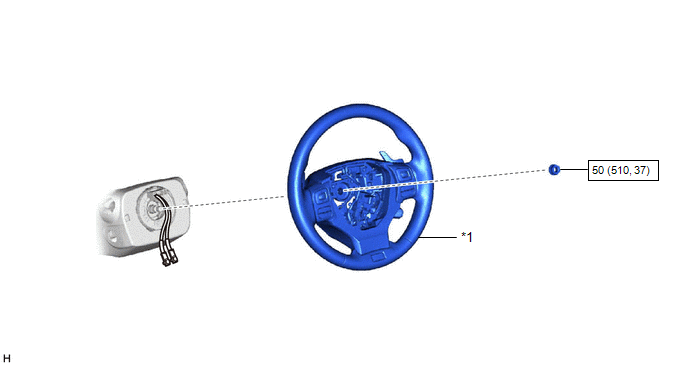

Fig 1: Steering Wheel Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	STEERING WHEEL ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

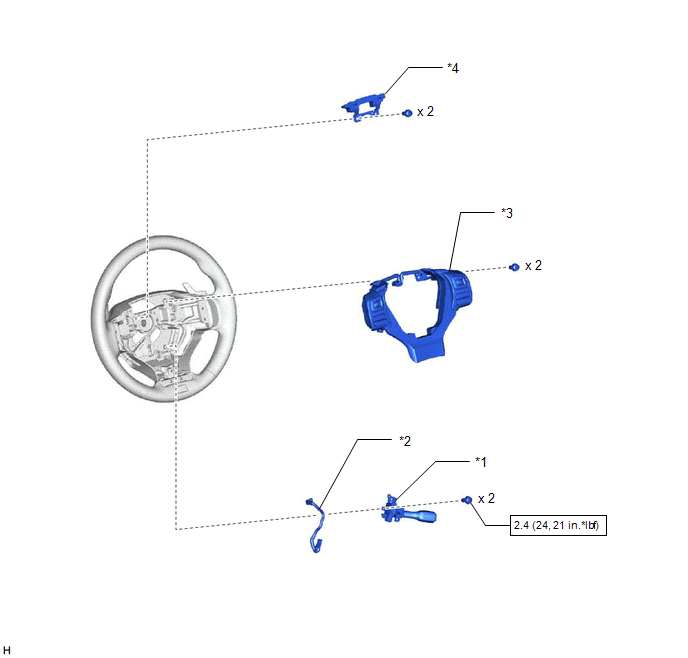

Fig 2: Steering Wheel Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CRUISE CONTROL MAIN SWITCH	*2	CRUISE CONTROL SWITCH WIRE
*3	STEERING PAD SWITCH ASSEMBLY	*4	STEERING SHAKE DAMPER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

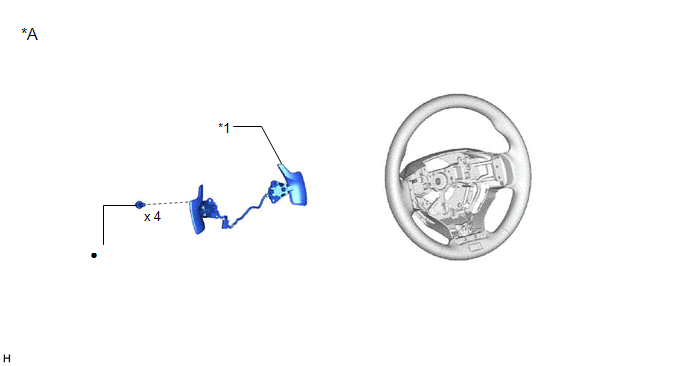

Fig 3: Steering Wheel Replacement Components (3 Of 4)

*A	w/ Shift Paddle Switch	-	-
*1	SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)	-	-
•	Non-reusable part	*	Precoated part

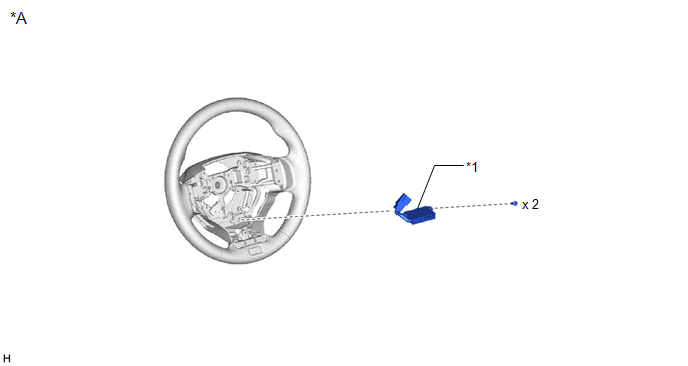

Fig 4: Steering Wheel Replacement Components (4 Of 4)

*A	w/ Steering Heater	-	-
*1	STEERING WHEEL HEATER CONTROL ASSEMBLY	-	-
