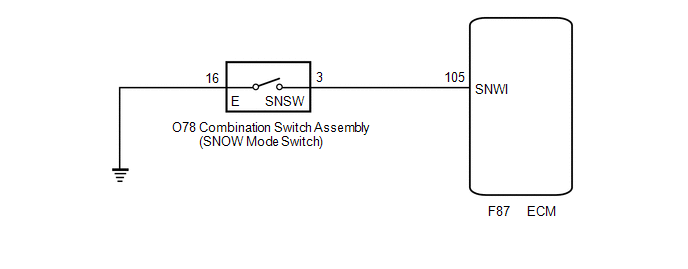

Pattern Select Switch Snow Mode Circuit [11/2017 - ]: Wiring Diagram

GTY801729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
