Parts Location [09/2015 - 12/2017]: Illustration
| *A | w/ Touchless Power Back Door | - | - |
| *1 | BACK DOOR COURTESY LIGHT SWITCH | *2 | BACK DOOR LOCK ASSEMBLY |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *9 | REAR DOOR LOCK ASSEMBLY LH | *10 | REAR DOOR LOCK ASSEMBLY RH |
| *11 | UNLOCK DETECTION SWITCH | *12 | DOOR LOCK MOTOR |
| *13 | MULTIPLEX NETWORK DOOR ECU | *14 | EMBLEM SENSOR |

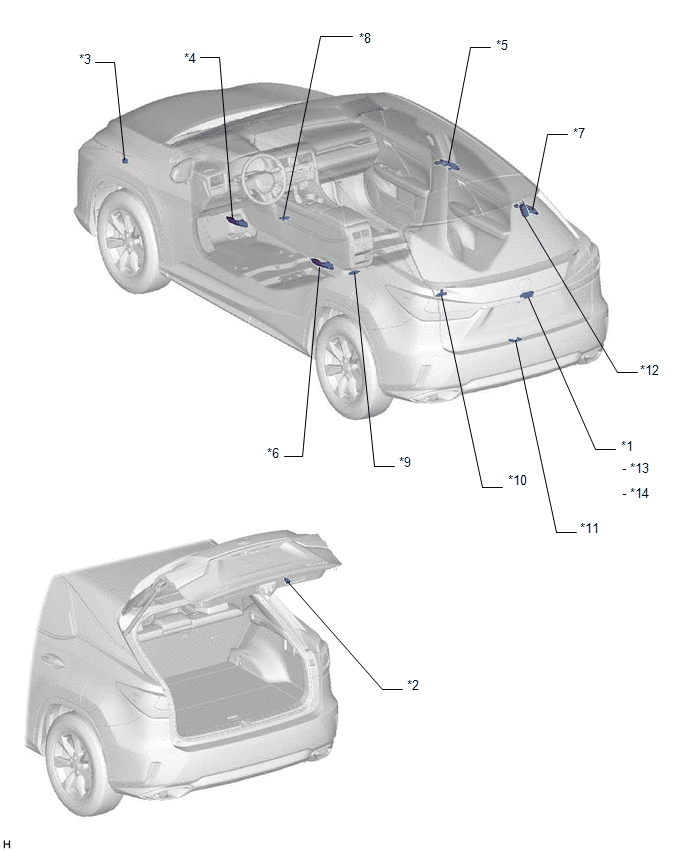

| *1 | BACK DOOR OPENER SWITCH ASSEMBLY | *2 | BACK DOOR CONTROL SWITCH |
| *3 | WIRELESS DOOR LOCK BUZZER | *4 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
| *5 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Front Passenger Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
*6 | REAR DOOR OUTSIDE HANDLE ASSEMBLY LH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
| *7 | REAR DOOR OUTSIDE HANDLE ASSEMBLY RH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
*8 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) |
| *9 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) | *10 | NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) |
| *11 | ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT) | *12 | DOOR CONTROL RECEIVER |
| *13 | LOCK SWITCH | *14 | OPEN SWITCH |

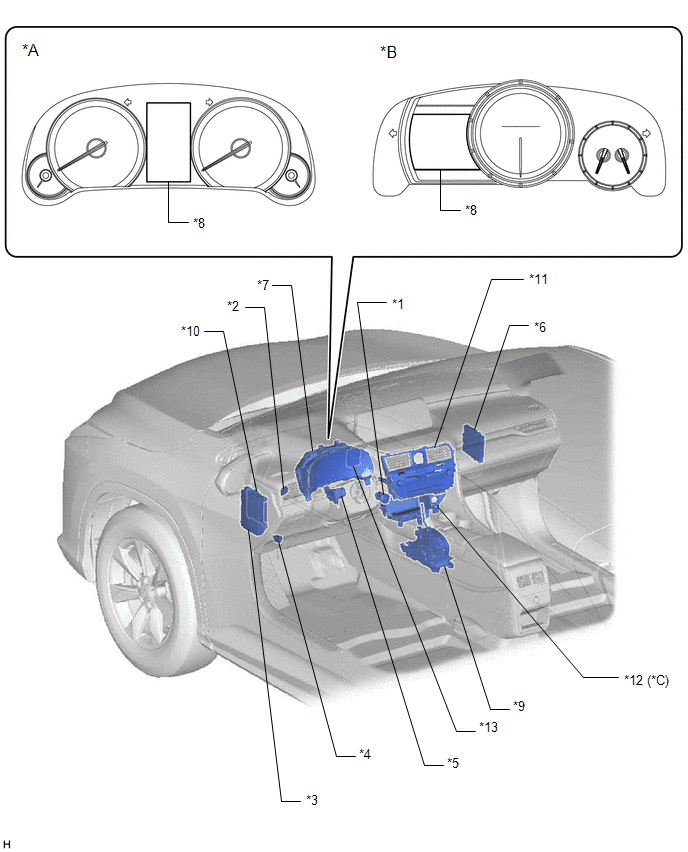

| *A | for Optitron Meter Type | *B | for TFT Meter Type |
| *C | w/ Wireless Charging System | - | - |
| *1 | ENGINE SWITCH | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - AM 2 FUSE - IG 1 NO. 4 FUSE - ECU-ACC FUSE - ECU-DCC NO. 2 FUSE - ALL DR LOCK RELAY - D DR UNLOCK RELAY - L/D DR UNLOCK RELAY |
*4 | DLC3 |
| *5 | STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | COMBINATION METER ASSEMBLY | *8 | MULTI-INFORMATION DISPLAY - KEY WARNING LIGHT |
| *9 | TRANSMISSION FLOOR SHIFT ASSEMBLY | *10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | RADIO RECEIVER ASSEMBLY - SECURITY INDICATOR LIGHT |
*12 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY |
| *13 | ID CODE BOX (IMMOBILIZER CODE ECU) | - | - |
