Terminals Of Ecu [09/2015 - ]

  1. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

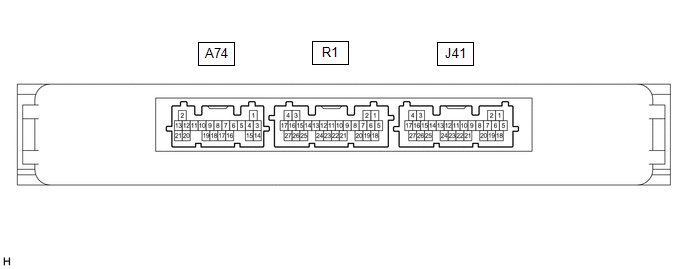

    GTY637321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the J41 certification ECU (smart key ECU assembly) connector.
    2. Measure the voltage and resistance according to the value (s) in the table below.
      Tester Connection Input/Output Wiring Color Terminal Description Condition Specified Condition Related Data List Item
      J41-18 (E) - Body ground - W-B - Body ground Ground Always Below 1 Ω -
      J41-4 (+B) - J41-18 (E) Input V - W-B Power supply Always 11 to 14 V -
      J41-15 (CUTB) - J41-18 (E) Input V - W-B Dark current cut pin* Always 11 to 14 V -
      1. *: In order to prevent the vehicle battery from being depleted when the vehicle is shipped long distances, a fuse that cuts unnecessary electrical load while the vehicle is being shipped is installed in the circuit. If the fuse is removed, the circuit becomes open. If the fuse that is between the vehicle battery and terminal CUTB is removed and the circuit is open, the certification ECU (smart key ECU assembly) changes to a certain control mode (example: the transmission of radio waves every 0.25 seconds, which form the detection area, stops).
    3. Reconnect the J41 certification ECU (smart key ECU assembly) connector.
    4. Measure the voltage and check for pulses according to the value (s) in the table below.
      Tester Connection Input/Output Wiring Color Terminal Description Condition Specified Condition Related Data List Item
      J41-17 (IG1D) - J41-18 (E) Output G - W-B IG power supply Engine switch off → on (IG) Below 1 V → 10 V or higher -
      R1-17 (CLG1) - J41-18 (E) Output P - W-B Output to driver door electrical key antenna
      (request signal (challenge) is sent to door electrical key antenna from certification ECU (smart key ECU assembly) to form detection area)      		 Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area *1)

      		 Pulse generation

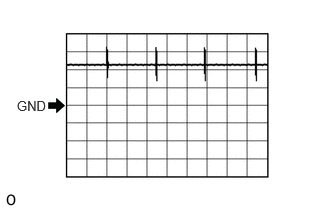

      (See waveform 1)      		 Overhead + Driver Side (key diagnostic mode)
      Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area *1)

      		 Pulse generation

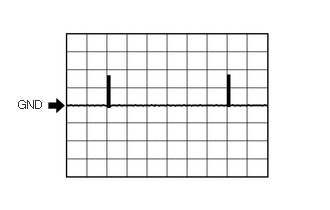

      (See waveform 2)
      R1-17 (CLG1) - J41-18 (E) Input P - W-B Input to driver door lock sensor
      (front door outside handle assembly (for driver door) lock sensor on signal is sent to the certification ECU (smart key ECU assembly))      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area *1)

      5. Driver door lock sensor touched
      		 Pulse generation

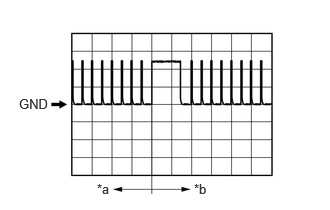

      (See waveform 3)      		 D-Door Trigger Switch
      R1-17 (CLG1) - J41-18 (E) Input P - W-B Input to driver door unlock sensor
      (when system is in unlock standby mode and unlock sensor is touched, door electrical key antenna sends unlock sensor input signal (sensing) to certification ECU (smart key ECU assembly))      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not near the vehicle
      5. Driver door unlock sensor touched
      		 Pulse generation

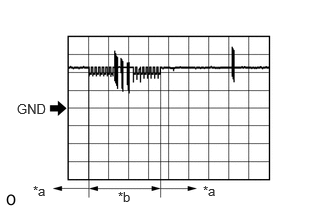

      (See waveform 4)      		 D-Door Touch Sensor
      R1-16 (CG1B) - J41-18 (E) Output V - W-B Output to driver door electrical key antenna (terminal on opposite side of component from CLG 1 output terminal) Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area *1)

      		 Pulse generation

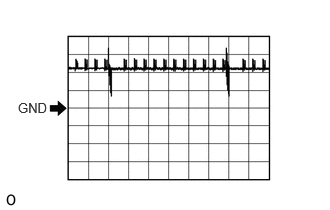

      (See waveform 5)      		 Overhead + Driver Side (key diagnostic mode)
      Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area *1)

      		 Pulse generation

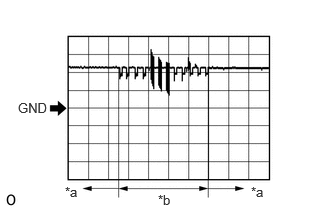

      (See waveform 6)
      R1-15 (CLG2) - J41-18 (E) Output W - W-B Output to front passenger door electrical key antenna
      (request signal (challenge) is sent to door electrical key antenna from certification ECU (smart key ECU assembly) to form detection area)      		 Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area *1)

      		 Pulse generation
      (See waveform 1)      		 Overhead + Passenger Side (key diagnostic mode)
      Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area *1)

      		 Pulse generation
      (See waveform 2)
      R1-15 (CLG2) - J41-18 (E) Input W - W-B Input to front passenger door lock sensor
      (front door outside handle assembly (for front passenger door) lock sensor on signal is sent to the certification ECU (smart key ECU assembly))      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area *1)

      5. Front passenger door lock sensor touched
      		 Pulse generation
      (See waveform 3)      		 P-Door Trigger Switch
      R1-15 (CLG2) - J41-18 (E) Input W - W-B Input to front passenger door unlock sensor
      (when system is in unlock standby mode and unlock sensor is touched, door electrical key antenna sends unlock sensor input signal (sensing) to certification ECU (smart key ECU assembly))      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not near the vehicle
      5. Front passenger door unlock sensor touched
      		 Pulse generation
      (See waveform 4)      		 P-Door Touch Sensor
      R1-14 (CG2B) - J41-18 (E) Output R - W-B Output to front passenger door electrical key antenna (terminal on opposite side of component from CLG 2 output terminal) Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area *1)

      		 Pulse generation
      (See waveform 5)      		 Overhead + Passenger Side (key diagnostic mode)
      Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area *1)

      		 Pulse generation
      (See waveform 6)
      R1-1 (CLG3) - J41-18 (E) Output R - W-B Output to rear door electrical key antenna (for driver side)
      (request signal (challenge) is sent to door electrical key antenna from certification ECU (smart key ECU assembly) to form detection area)      		 Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area *1)

      		 Pulse generation
      (See waveform 1)      		 Overhead + Driver Side Rear (key diagnostic mode)
      Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area *1)

      		 Pulse generation
      (See waveform 2)
      R1-1 (CLG3) - J41-18 (E) Input R - W-B Input to rear door lock sensor (for driver side)
      (rear door outside handle assembly (for driver side) lock sensor on signal is sent to the certification ECU (smart key ECU assembly))      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area *1)

      5. Rear door (for driver side) lock sensor touched
      		 Pulse generation
      (See waveform 3)      		 Dr-Door Trigger Switch
      R1-1 (CLG3) - J41-18 (E) Input R - W-B Input to rear door unlock sensor (for driver side)
      (when system is in unlock standby mode and unlock sensor is touched, door electrical key antenna sends unlock sensor input signal (sensing) to certification ECU (smart key ECU assembly))      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not near the vehicle
      5. Rear door (for driver side) unlock sensor touched
      		 Pulse generation
      (See waveform 4)      		 Dr-Door Touch Sensor
      R1-2 (CG3B) - J41-18 (E) Output B - W-B Output to rear door (for driver side) electrical key antenna (terminal on opposite side of component from CLG 3 output terminal) Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area *1)

      		 Pulse generation
      (See waveform 5)      		 Overhead + Driver Side Rear (key diagnostic mode)
      Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area *1)

      		 Pulse generation
      (See waveform 6)
      R1-9 (CLG4) - J41-18 (E) Output L - W-B Output to rear door electrical key antenna (for front passenger side)
      (request signal (challenge) is sent to door electrical key antenna from certification ECU (smart key ECU assembly) to form detection area)      		 Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area *1)

      		 Pulse generation
      (See waveform 1)      		 Overhead + Passenger Side Rear (key diagnostic mode)
      Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area *1)

      		 Pulse generation
      (See waveform 2)
      R1-9 (CLG4) - J41-18 (E) Input L - W-B Input to rear door lock sensor (for front passenger side)
      (rear door outside handle assembly (for front passenger side) lock sensor on signal is sent to the certification ECU (smart key ECU assembly))      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area *1)

      5. Rear door (for front passenger side) lock sensor touched
      		 Pulse generation
      (See waveform 3)      		 Pr-Door Trigger Switch
      R1-9 (CLG4) - J41-18 (E) Input L - W-B Input to rear door unlock sensor (for front passenger side)
      (when system is in unlock standby mode and unlock sensor is touched, door electrical key antenna sends unlock sensor input signal (sensing) to certification ECU (smart key ECU assembly))      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not near the vehicle
      5. Rear door (for front passenger side) unlock sensor touched
      		 Pulse generation
      (See waveform 4)      		 Pr-Door Touch Sensor
      R1-8 (CG4B) - J41-18 (E) Output Y - W-B Output to rear door (for front passenger side) electrical key antenna (terminal on opposite side of component from CLG 4 output terminal) Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area *1)

      		 Pulse generation
      (See waveform 5)      		 Overhead + Passenger Side Rear (key diagnostic mode)
      Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area *1)

      		 Pulse generation
      (See waveform 6)
      J41-8 (CLG5) - J41-18 (E) Output B - W-B Output to No. 1 indoor electrical key antenna assembly (front floor) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door
      		 Pulse generation
      (See waveform 7)      		 Overhead + Front Room (key diagnostic mode)
      J41-9 (CG5B) - J41-18 (E) Output Y - W-B Output to No. 1 indoor electrical key antenna assembly (front floor) (terminal on opposite side of component from CLG 5 output terminal) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door
      		 Pulse generation
      (See waveform 7)      		 Overhead + Front Room (key diagnostic mode)
      R1-5 (CLG6) - J41-18 (E) Output P - W-B Output to No. 2 indoor electrical key antenna assembly (rear floor) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door
      		 Pulse generation
      (See waveform 7)      		 Overhead + Rear Room (key diagnostic mode)
      R1-6 (CG6B) - J41-18 (E) Output L - W-B Output to No. 2 indoor electrical key antenna assembly (rear floor) (terminal on opposite side of component from CLG 6 output terminal) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door
      		 Pulse generation
      (See waveform 7)      		 Overhead + Rear Room (key diagnostic mode)
      R1-11 (CLG7) - J41-18 (E) Output V - W-B Output to No. 3 indoor electrical key antenna assembly (inside luggage compartment) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door
      		 Pulse generation
      (See waveform 7)      		 Overhead + Back Door (inside) (key diagnostic mode)
      R1-10 (CG7B) - J41-18 (E) Output W - W-B Output to No. 3 indoor electrical key antenna assembly (inside luggage compartment) (terminal on opposite side of component from CLG 7 output terminal) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door
      		 Pulse generation
      (See waveform 7)      		 Overhead + Back Door (inside) (key diagnostic mode)
      R1-13 (CLG8) - J41-18 (E) Output G - W-B Output to electrical key antenna (outside luggage compartment) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Back door opener switch assembly off → on
      		 Pulse generation
      (See waveform 8)      		 Overhead + Back Door (key diagnostic mode)
      R1-12 (CG8B) - J41-18 (E) Output P - W-B Output to electrical key antenna (outside luggage compartment) (terminal on opposite side of component from CLG 8 output terminal) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Back door opener switch assembly off → on
      		 Pulse generation
      (See waveform 8)      		 Overhead + Back Door (key diagnostic mode)
      R1-26 (TSW5) - J41-18 (E) Input G - W-B Back door opener switch assembly (open switch) signal input Back door opener switch assembly (open switch) off → on Pulse generation
      (See waveform 9)      		 Tr/B-Door Unlock SW
      R1-27 (TSW6) - J41-18 (E) Input L - W-B Back door opener switch assembly (lock switch) signal input Back door opener switch assembly (lock switch) off → on Pulse generation
      (See waveform 9)      		 Tr/B-Door Lock SW
      R1-18 (RCO) - J41-18 (E) Output LG - W-B Output to door control receiver
      (Power supply for door control receiver. Certification ECU (smart key ECU assembly) outputs 5 V when receiver starts operating.)      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area
      3. Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed
      		 Pulse generation
      (See waveform 10)      		 -
      R1-19 (RDAM) - J41-18 (E) Input W - W-B Door control receiver verifies data received from electrical key transmitter sub-assembly.
      Door control receiver sends data from electrical key transmitter sub-assembly to certification ECU (smart key ECU assembly) (Door control receiver intermittently grounds 12 V signal from certification ECU (smart key ECU assembly)).      		 Proceed:
      1. Engine switch off
      2. All doors locked
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area
      5. Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed
      		 Pulse generation
      (See waveform 11)      		 -
      R1-20 (CSEL) - J41-18 (E) Output SB - W-B Communication channel switching circuit Procedure:
      1. Engine switch off
      2. All doors closed
      		 Below 1 V → pulse generation -
      R1-7 (WCSW) - J41-18 (E) *2 Output V - W-B Wireless charger system stop signal Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly inside vehicle
      3. Engine switch off → on (ACC)
      		 Below 1 V → 4.5 to 6 V
      (For 1 second after engine switch on (ACC))      		 -
      1. *1: For details about the entry function detection area, refer to Operation Check.

        Refer to OPERATION CHECK [09/2015 - 08/2019] , or refer to OPERATION CHECK [08/2019 - ]

      2. *2: w/ Wireless Charging System
    5. Using an oscilloscope, check waveform 1.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      GTY448796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 1 (REFERENCE)

      Item Content
      Tester Connection R1-17 (CLG1) - J41-18 (E)
      R1-15 (CLG2) - J41-18 (E)
      R1-1 (CLG3) - J41-18 (E)
      R1-9 (CLG4) - J41-18 (E)
      Tool Setting 5 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area*)
      1. *: For details about the entry function detection area, refer to Operation Check.

        Refer to OPERATION CHECK [09/2015 - 08/2019] , or refer to OPERATION CHECK [08/2019 - ]

    6. Using an oscilloscope, check waveform 2.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      GTY427636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 2 (REFERENCE)

      Item Content
      Tester Connection R1-17 (CLG1) - J41-18 (E)
      R1-15 (CLG2) - J41-18 (E)
      R1-1 (CLG3) - J41-18 (E)
      R1-9 (CLG4) - J41-18 (E)
      Tool Setting 5 V/DIV., 100 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area*)
      1. *: For details about the entry function detection area, refer to Operation Check.

        Refer to OPERATION CHECK [09/2015 - 08/2019] , or refer to OPERATION CHECK [08/2019 - ]

    7. Using an oscilloscope, check waveform 3.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      GTY430392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock sensor not touched
      *b Lock sensor touched
      WAVEFORM 3 (REFERENCE)

      Item Content
      Tester Connection R1-17 (CLG1) - J41-18 (E)
      R1-15 (CLG2) - J41-18 (E)
      R1-1 (CLG3) - J41-18 (E)
      R1-9 (CLG4) - J41-18 (E)
      Tool Setting 5 V/DIV., 40 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area*)

      5. Lock sensor not touched → touched
      1. *: For details about the entry function detection area, refer to Operation Check.

        Refer to OPERATION CHECK [09/2015 - 08/2019] , or refer to OPERATION CHECK [08/2019 - ]

    8. Using an oscilloscope, check waveform 4.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      GTY438196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Unlock sensor not touched
      *b Unlock sensor touched
      WAVEFORM 4 (REFERENCE)

      Item Content
      Tester Connection R1-17 (CLG1) - J41-18 (E)
      R1-15 (CLG2) - J41-18 (E)
      R1-1 (CLG3) - J41-18 (E)
      R1-9 (CLG4) - J41-18 (E)
      Tool Setting 5 V/DIV., 50 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not near the vehicle
      5. Unlock sensor not touched → touched
    9. Using an oscilloscope, check waveform 5.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      GTY504760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 5 (REFERENCE)

      Item Content
      Tester Connection R1-16 (CG1B) - J41-18 (E)
      R1-14 (CG2B) - J41-18 (E)
      R1-2 (CG3B) - J41-18 (E)
      R1-8 (CG4B) - J41-18 (E)
      Tool Setting 5 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area*)
      1. *: For details about the entry function detection area, refer to Operation Check.

        Refer to OPERATION CHECK [09/2015 - 08/2019] , or refer to OPERATION CHECK [08/2019 - ]

    10. Using an oscilloscope, check waveform 6.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

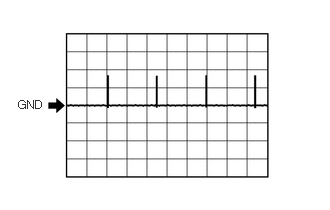

      GTY499393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 6 (REFERENCE)

      Item Content
      Tester Connection R1-16 (CG1B) - J41-18 (E)
      R1-14 (CG2B) - J41-18 (E)
      R1-2 (CG3B) - J41-18 (E)
      R1-8 (CG4B) - J41-18 (E)
      Tool Setting 5 V/DIV., 100 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area*)
      1. *: For details about the entry function detection area, refer to Operation Check.

        Refer to OPERATION CHECK [09/2015 - 08/2019] , or refer to OPERATION CHECK [08/2019 - ]

    11. Using an oscilloscope, check waveform 7.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

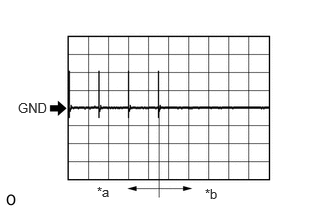

      GTY426276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a For 30 seconds after any door closed
      *b After 30 seconds or more have elapsed since any door closed
      WAVEFORM 7 (REFERENCE)

      Item Content
      Tester Connection J41-8 (CLG5) - J41-18 (E)
      J41-9 (CG5B) - J41-18 (E)
      R1-5 (CLG6) - J41-18 (E)
      R1-6 (CG6B) - J41-18 (E)
      R1-11 (CLG7) - J41-18 (E)
      R1-10 (CG7B) - J41-18 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door
    12. Using an oscilloscope, check waveform 8.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

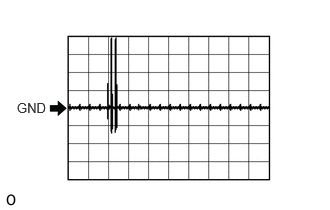

      GTY432845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 8 (REFERENCE)

      Item Content
      Tester Connection R1-13 (CLG8) - J41-18 (E)
      R1-12 (CG8B) - J41-18 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Back door opener switch assembly off → on
    13. Using an oscilloscope, check waveform 9.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

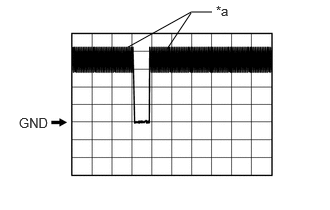

      GTY379040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Checking for switch on signal at short intervals
      WAVEFORM 9 (REFERENCE)

      Item Content
      Tester Connection R1-26 (TSW5) - J41-18 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Back door opener switch assembly (open switch) off → on
      WAVEFORM 9 (REFERENCE)

      Item Content
      Tester Connection R1-27 (TSW6) - J41-18 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Back door opener switch assembly (lock switch) off → on
    14. Using an oscilloscope, check waveform 10.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      GTY376258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Before lock or unlock switch of electrical key transmitter sub-assembly pressed
      *b After lock or unlock switch of electrical key transmitter sub-assembly pressed
      WAVEFORM 10 (REFERENCE)

      Item Content
      Tester Connection R1-18 (RCO) - J41-18 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area
      3. Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed
    15. Using an oscilloscope, check waveform 11.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

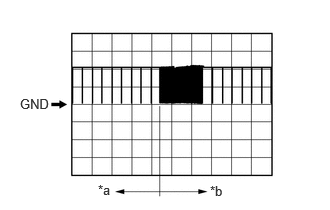

      GTY367752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Before lock or unlock switch of electrical key transmitter sub-assembly pressed
      *b After lock or unlock switch of electrical key transmitter sub-assembly pressed
      WAVEFORM 11 (REFERENCE)

      Item Content
      Tester Connection R1-19 (RDAM) - J41-18 (E)
      Tool Setting 5 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. All doors locked
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area
      5. Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed

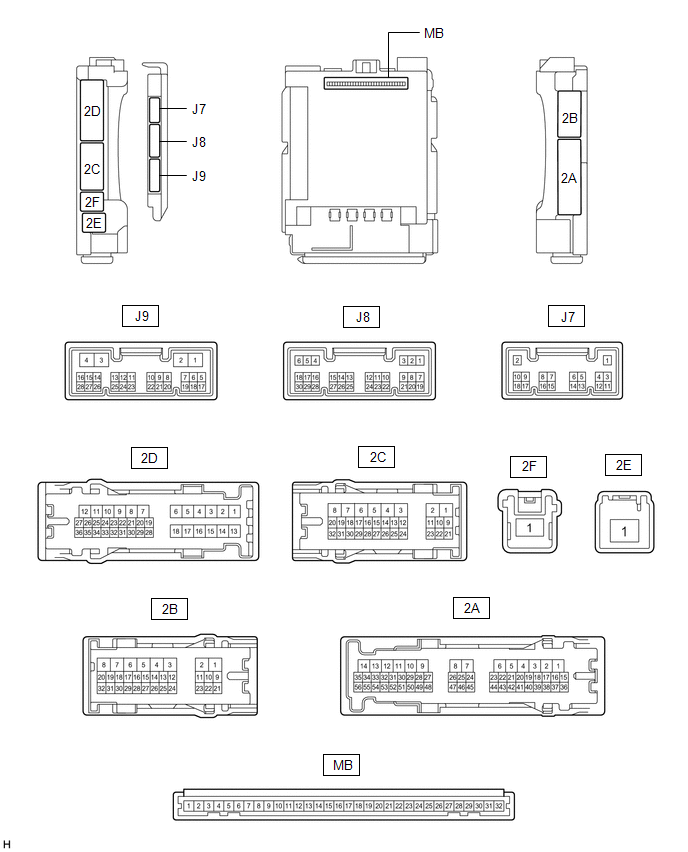

  2. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
    GTY634420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

      Refer to REMOVAL [09/2015 - 08/2016] , or refer to REMOVAL [08/2016 - 08/2019] , or refer to REMOVAL [08/2019 - ]

    2. Measure the voltage and resistance according to the value (s) in the table below.
      Tester Connection Input/Output Wiring Color Terminal Description Condition Specified Condition Related Data List Item
      A-11 (GND1) - Body ground - - Ground Always Below 1 Ω -
      A-31 (BECU) - Body ground Input - Battery power supply (for CPU) Engine switch off 11 to 14 V -
      J8-6 (FLCY) - Body ground Input P - Body ground Front door LH courtesy light switch input Front door LH closed → open 10 kΩ or higher → Below 1 Ω FL Door Courtesy SW
      J8-27 (FRCY) - Body ground Input R - Body ground Front door RH courtesy light switch input Front door RH closed → open 10 kΩ or higher → Below 1 Ω FR Door Courtesy SW
      A-13 (LCTY) - Body ground Input - Rear door LH courtesy light switch input Rear door LH closed → open 10 kΩ or higher → Below 1 Ω RL Door Courtesy SW
      A-2 (RCTY) - Body ground Input - Rear door RH courtesy light switch input Rear door RH closed → open 10 kΩ or higher → Below 1 Ω RR Door Courtesy SW
    3. Install the main body ECU (multiplex network body ECU) to the instrument panel junction block assembly.

      Refer to INSTALLATION [09/2015 - ]

    4. Measure the voltage and check for pulses according to the value (s) in the table below.
      Tester Connection Input/Output Wiring Color Terminal Description Condition Specified Condition Related Data List Item
      2B-13 (LSFL) - Body ground Input B - Body ground Front door LH unlock detection switch input Front door LH locked → unlocked Pulse generation
      (See waveform 1)      		 FL Door Lock Pos
      2B-12 (LSFR) - Body ground Input P - Body ground Front door RH unlock detection switch input Front door RH locked → unlocked Pulse generation
      (See waveform 1)      		 FR Door Lock Pos
      2B-14 (LSWL) - Body ground Input V - Body ground Rear door LH unlock detection switch input Rear door LH locked → unlocked Pulse generation
      (See waveform 1)      		 RL-Door Lock Pos SW
      J9-2 (LSWR) - Body ground Input L - Body ground Rear door RH unlock detection switch input Rear door RH locked → unlocked Pulse generation
      (See waveform 1)      		 RR-Door Lock Pos SW
      J8-6 (FLCY) - Body ground Input P - Body ground Front door LH courtesy light switch input Front door LH closed → open Pulse generation
      (See waveform 2)      		 FL Door Courtesy SW
      J8-27 (FRCY) - Body ground Input R - Body ground Front door RH courtesy light switch input Front door RH closed → open Pulse generation
      (See waveform 2)      		 FR Door Courtesy SW
      2D-24 (LCTY) - Body ground Input W - Body ground Rear door LH courtesy light switch input Rear door LH closed → open Pulse generation
      (See waveform 2)      		 RL Door Courtesy SW
      2A-31 (RCTY) - Body ground Input R - Body ground Rear door RH courtesy light switch input Rear door RH closed → open Pulse generation
      (See waveform 2)      		 RR Door Courtesy SW
      2C-29 (BZR) - Body ground Output P - Body ground Wireless buzzer signal output Procedure:
      1. Engine switch off
      2. All doors closed
      3. Lock switch of electrical key transmitter sub-assembly not pressed → pressed
      		 Below 1 V → pulse generation -
    5. Using an oscilloscope, check waveform 1.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

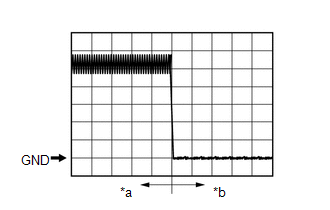

      WAVEFORM 1 (REFERENCE)

      Item Content
      Tester Connection 2B-13 (LSFL) - Body ground
      2B-12 (LSFR) - Body ground
      2B-14 (LSWL) - Body ground
      J9-2 (LSWR) - Body ground
      Tool Setting 2 V/DIV., 200 ms/DIV.
      Condition Door locked → unlocked
      GTY443250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Door locked
      *b Door unlocked
    6. Using an oscilloscope, check waveform 2.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      WAVEFORM 2 (REFERENCE)

      Item Content
      Tester Connection J8-6 (FLCY) - Body ground
      J8-27 (FRCY) - Body ground
      2D-24 (LCTY) - Body ground
      2A-31 (RCTY) - Body ground
      Tool Setting 2 V/DIV., 200 ms/DIV.
      Condition Door closed → opened
      GTY443251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Door closed
      *b Door open
scientia non olet · About LEMON Manuals
