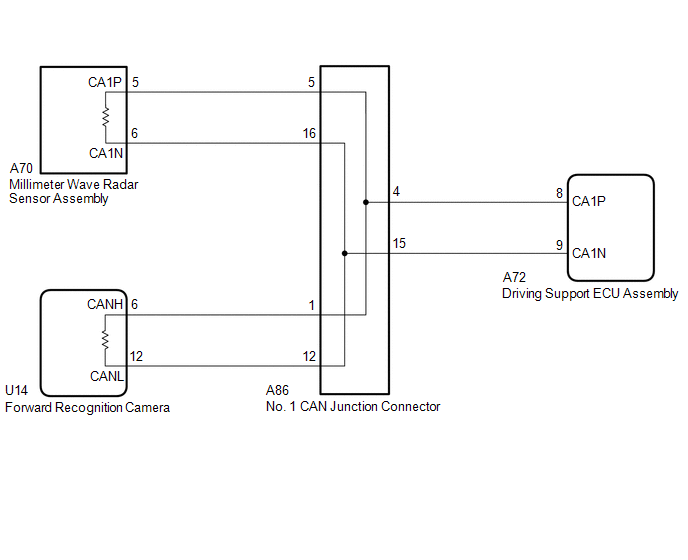

DTC U1002: Lost Communication with Gateway Module [09/2015 - 08/2019]: Wiring Diagram

GTY638433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
