Components [08/2019 - 07/2020]

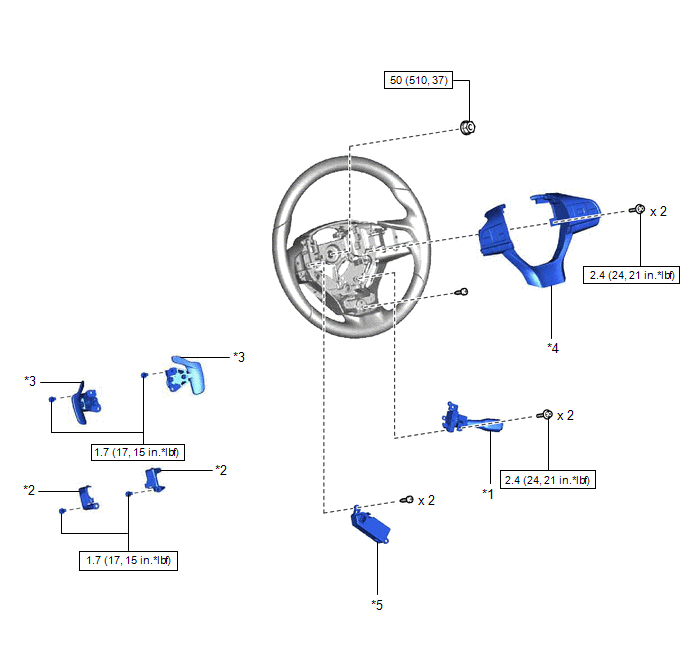

Fig 1: Heated Steering Wheel Controller Replacement Components With Torque Specifications [08/2019 - 07/2020]
| Callout | Description | Callout | Description |
| *1 | CRUISE CONTROL MAIN SWITCH | *2 | LOWER NO. 1 STEERING WHEEL BOSS COVER |
| *3 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | STEERING VIBRATION AND HEATER ECU | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| * | Precoated Part | - | - |
