Installation [08/2016 - 08/2019]: Procedure
- INSTALL STEERING VIBRATION AND HEATER ECU

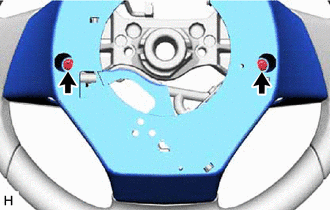

- Connect the connector to the steering vibration and heater ECU.
- Install the steering vibration and heater ECU to the lower steering wheel boss cover with the 2 screws.NOTE:
If the heater thermistor comes off the lower steering wheel cover, replace the steering wheel assembly.

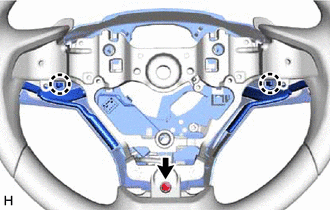

- Engage the 2 claws to install the lower steering wheel boss cover to the steering wheel assembly.
- Install the screw.
- w/o Shift Paddle Switch:
- Connect each connector to the steering vibration and heater ECU.
- Engage the guide to install the wire harness to the lower steering wheel cover.
- INSTALL SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) (w/ Shift Paddle Switch)
for U881F: Refer to PROCEDURE - Step 2
for U881E: Refer to PROCEDURE - Step 2
- INSTALL LOWER NO. 1 STEERING WHEEL BOSS COVER (w/ Shift Paddle Switch)
for U881F: Refer to PROCEDURE - Step 3
for U881E: Refer to PROCEDURE - Step 3
- INSTALL STEERING PAD SWITCH ASSEMBLY
See step 1
- INSTALL CRUISE CONTROL MAIN SWITCH
Refer to PROCEDURE - Step 1
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- INSTALL STEERING WHEEL ASSEMBLY
Refer to INSTALLATION [08/2016 - 08/2019]
