Disassembly [09/2015 - ]: Procedure

1. Secure the steering column assembly in a vise between aluminum plates and cloths.
   NOTE:

   Do not overtighten the vise.

2. Using a drill, drill a hole in the steering lock set bolt and insert a screw extractor.
3. Using the screw extractor, remove the 2 steering lock set bolts and steering lock actuator or upper bracket assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

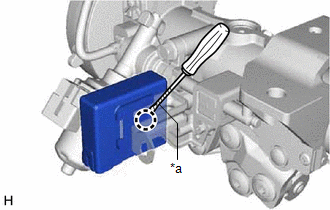

1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the multiplex tilt and telescopic ECU.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

Refer to PROCEDURE - Step 3 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 3 [08/2016 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]
