Removal [08/2016 - 08/2019]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [08/2016 - 08/2019]

  2. REMOVE STEERING PAD SWITCH ASSEMBLY

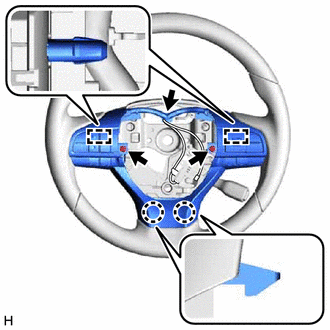

    1. Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.
      GTY677817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Disengage the 2 claws and 2 pins to remove the steering pad switch assembly.
