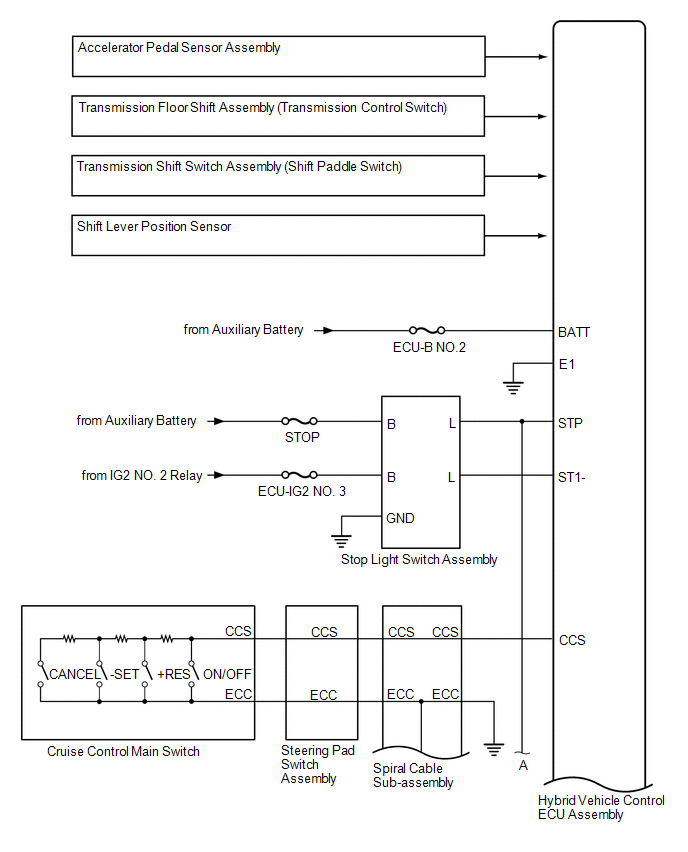

| Hybrid Vehicle Control ECU Assembly |

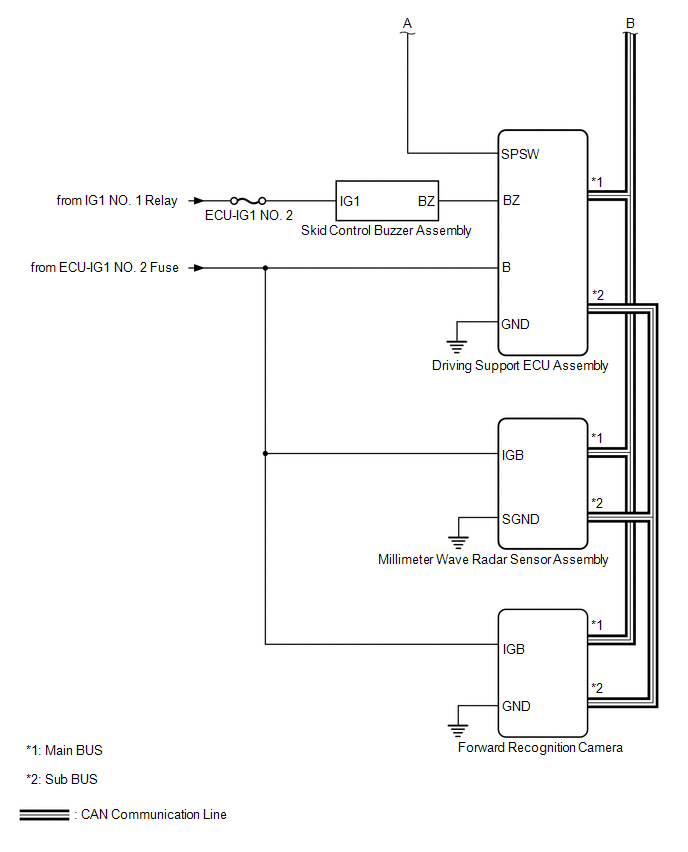

Driving Support ECU Assembly |
- Cruise control operation signal
- Accelerator pedal idle position signal
- Accel override operation signal
- Cruise control speed status signal
- Approach warning signal
- Brake signal
- Cruise control main switch (ON/OFF button) on signal
- Cruise control mode signal
- Set vehicle-to-vehicle distance signal
- Cruise preset vehicle speed signal
|
CAN |
| Hybrid Vehicle Control ECU Assembly |
Skid Control ECU Assembly |
- Cruise control operation signal
- Accelerator pedal idle position signal
- Cruise control operation request signal
- Braking request signal
- Target acceleration from cruise control system signal
|
CAN |
| Hybrid Vehicle Control ECU Assembly |
Combination Meter Assembly |
- Low speed cancel buzzer request signal
- Low speed zone leading vehicle lost buzzer signal
- Control vehicle speed unit signal
- Cruise control display ID signal
- Cruise control vehicle speed signal
|
CAN |
| Hybrid Vehicle Control ECU Assembly |
Forward Recognition Camera |
Cruise control operation signal |
CAN |
| Driving Support ECU Assembly |
Hybrid Vehicle Control ECU Assembly |
- Cruise control target acceleration signal
- Cruise control mode signal
- Target vehicle detection signal
- Vehicle-to-vehicle distance control switch status signal
- Detection of dirt adhesion on millimeter wave radar sensor signal
- Millimeter wave radar sensor malfunction signal
- Approach warning signal
- Bad environment detection signal
- Cruise control target acceleration raw data signal
- Force request for driving support ECU assembly signal
- Control status of driving support ECU assembly signal
|
CAN |
| Driving Support ECU Assembly |
Combination Meter Assembly |
Millimeter wave radar sensor beam axis deviation signal |
CAN |

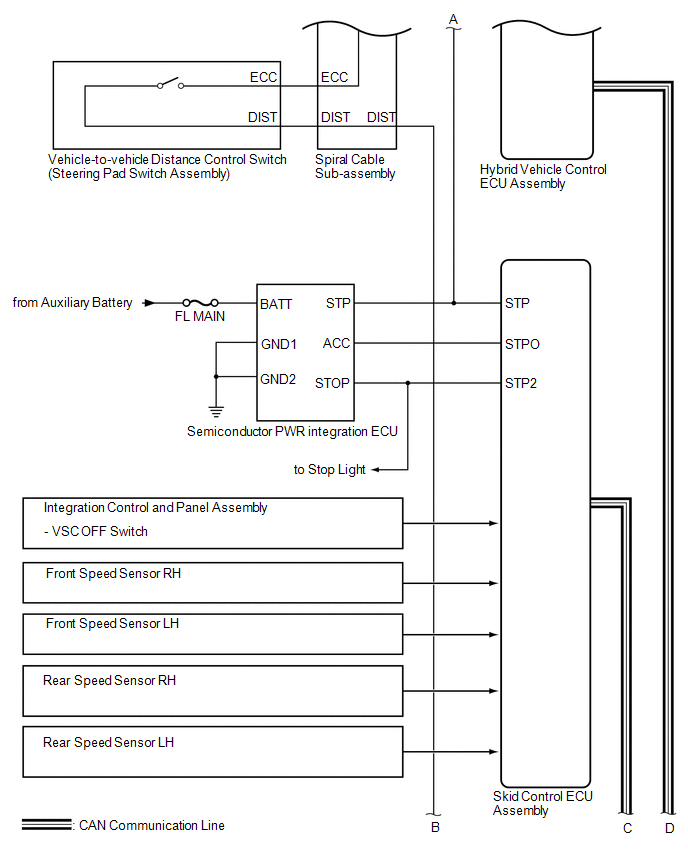

| Skid Control ECU Assembly |
Driving Support ECU Assembly |
- Stop light switch status signal
- Yaw rate sensor zero point signal
- Yaw rate sensor zero point malfunction signal
- Under brake control signal
|
CAN |
| Skid Control ECU Assembly |
Hybrid Vehicle Control ECU Assembly |
- Wheel speed signal
- Under TRC control signal
- Under VSC control signal
- Cruise control cancellation request signal
- Stop light switch control relay malfunction signal
- Temporary inhibition of brake control signal
- Under brake control signal
- Presumed road slope signal
- Estimated acceleration signal
|
CAN |

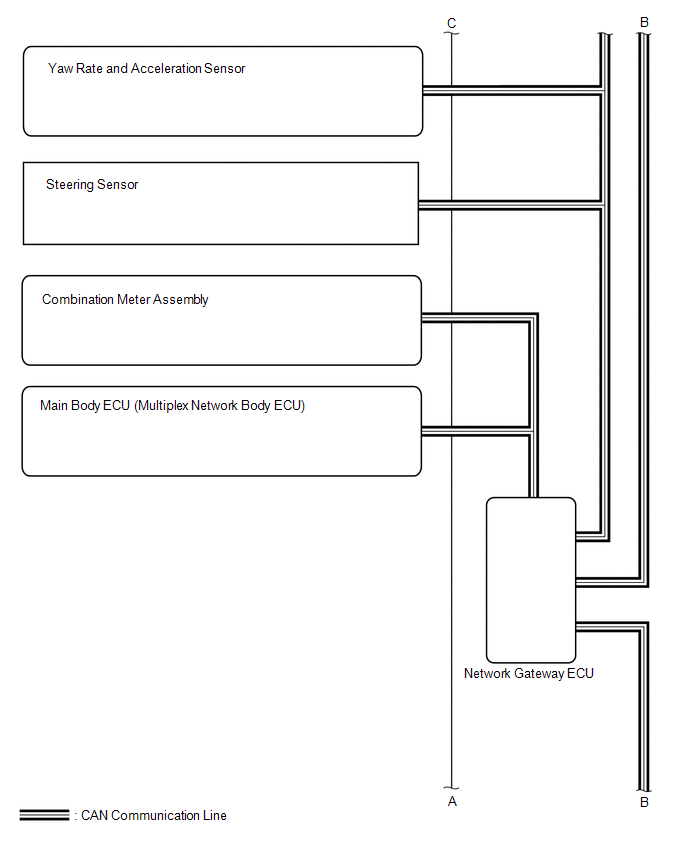

| Steering Sensor |
Driving Support ECU Assembly |
- Steering sensor malfunction signal
- Steering angle signal
- Steering sensor zero point signal
|
CAN |
| Main Body ECU (Multiplex Network Body ECU) |
Driving Support ECU Assembly |
Country specification information signal |
CAN |
| Yaw Rate and Acceleration Sensor |
Driving Support ECU Assembly |
- Yaw rate sensor signal
- Yaw rate sensor malfunction signal
- Yaw rate sensor voltage signal
|
CAN |
