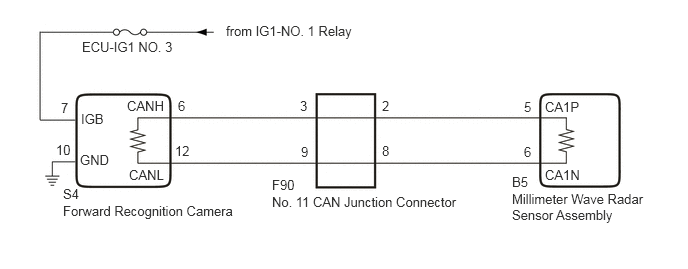

DTC U0104-87: Lost Communication with Cruise Control Module Missing Message [10/2018 - 08/2021]: Wiring Diagram

GTY822530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
