Components [10/2018 - 07/2022]

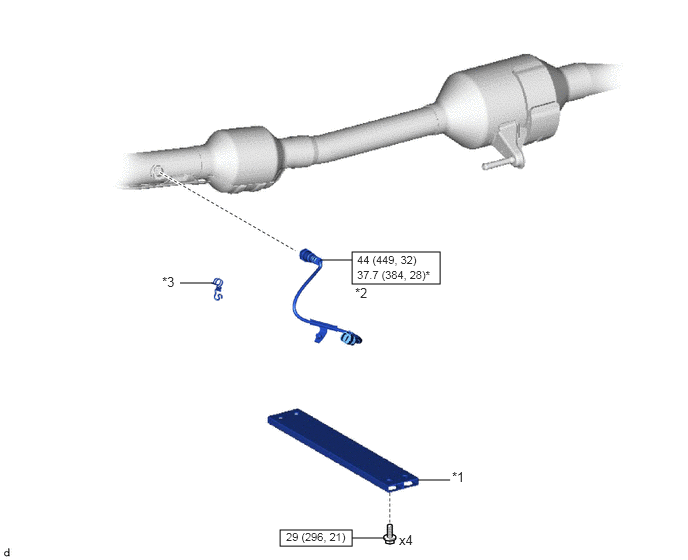

Fig 1: Air Fuel Ratio Sensor (Sensor 2) Replacement Components With Torque Specifications
GTY780117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT FLOOR CENTER BRACE *2 NO. 2 AIR FUEL RATIO SENSOR
*3 WIRE HARNESS CLAMP BRACKET - -
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
