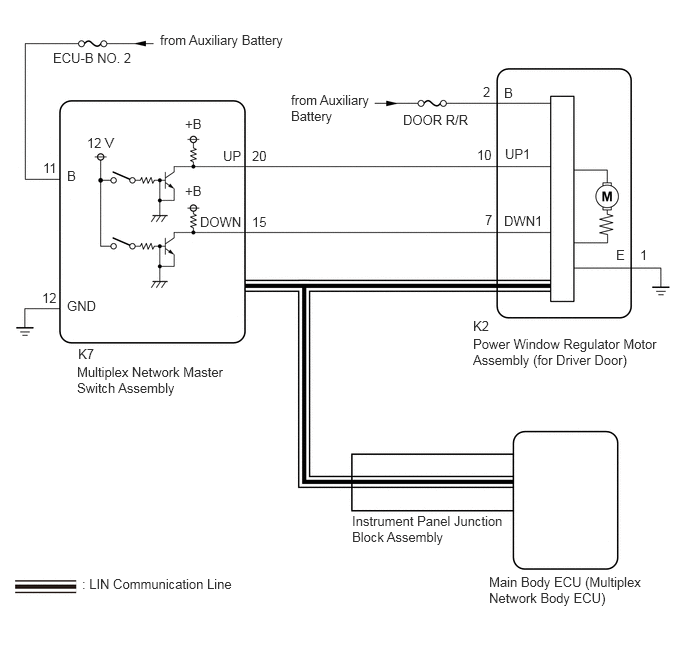

Driver Side Power Window does not Operate with Power Window Master Switch [10/2018 - 07/2022]: Wiring Diagram

GTY821355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
