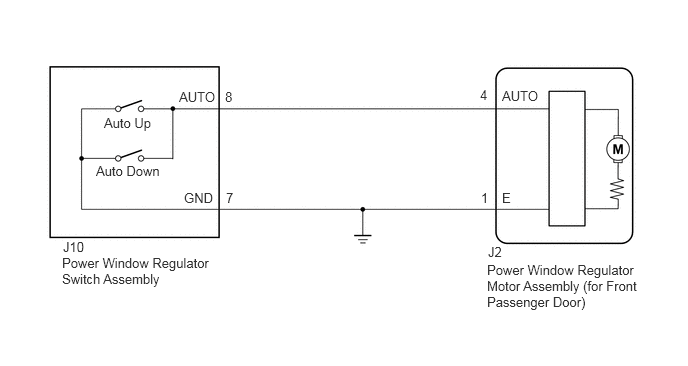

Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [10/2018 - ]: Wiring Diagram

GTY830485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
