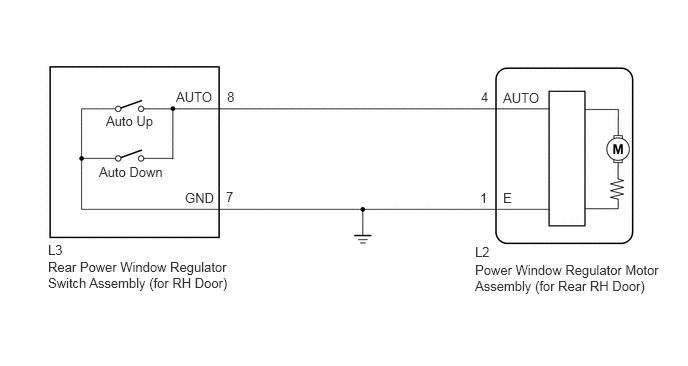

Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH [10/2018 - ]: Wiring Diagram

GTY789795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
