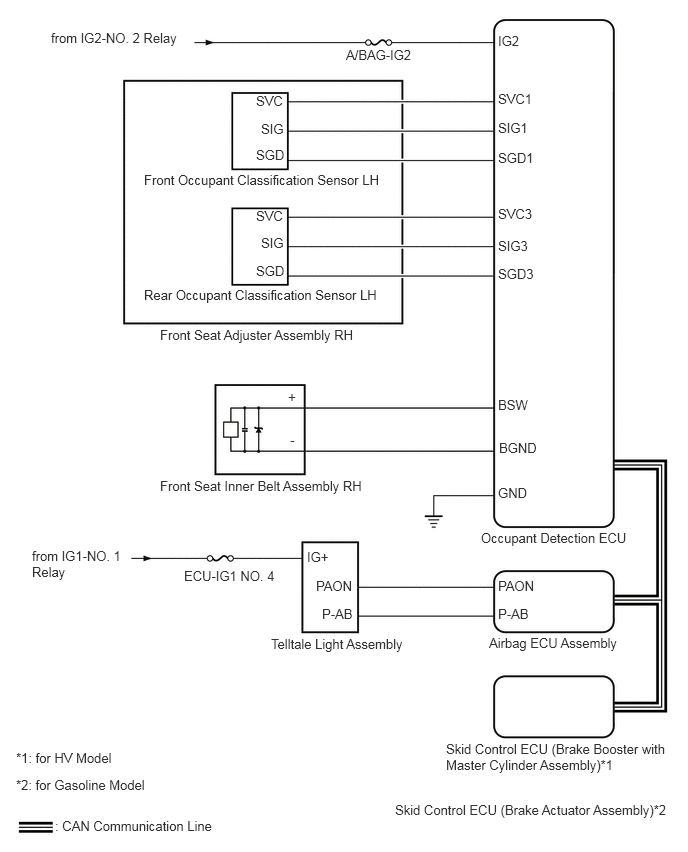

System Diagram [10/2018 - 07/2022]

GTY826709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU
(Transmitter)		 Receiving ECU
(Receiver)		 Signal Communication Method
Airbag ECU Assembly Occupant Detection ECU
  • Crash detection signal
  • Acceleration signal
 CAN
Skid Control ECU (Brake Booster with Master Cylinder Assembly)*1
  1. Vehicle speed signal
Skid Control ECU (Brake Actuator Assembly)*2
Occupant Detection ECU Airbag ECU Assembly
  • Occupant classification system failure signal
  • Occupant classification system zero point error signal
  • Occupant state for front passenger signal
  • Buckle switch state of front passenger signal
  1. *1: for HV Model
  2. *2: for Gasoline Model
