System Diagram [08/2020 - ]

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

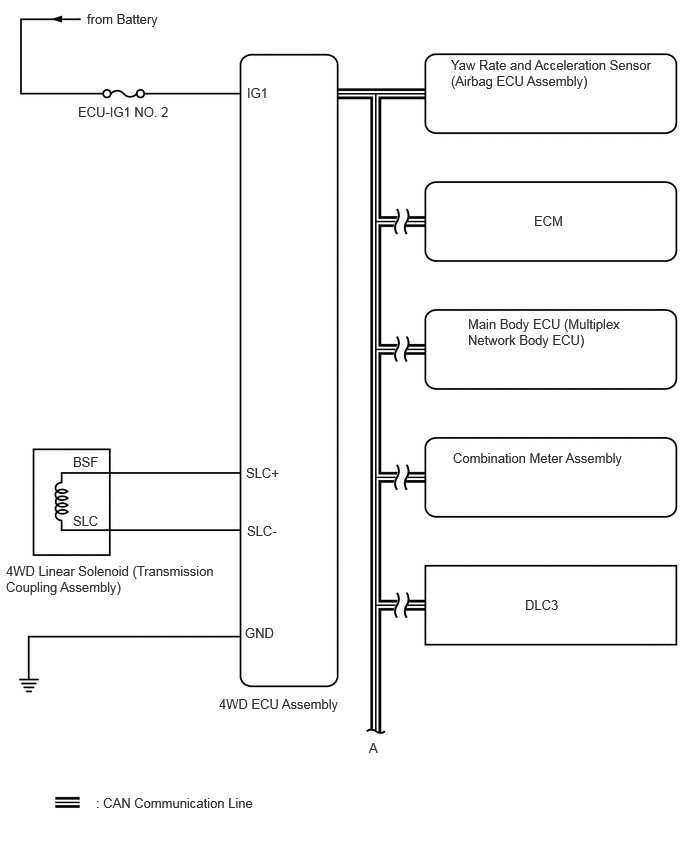

GTY957572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

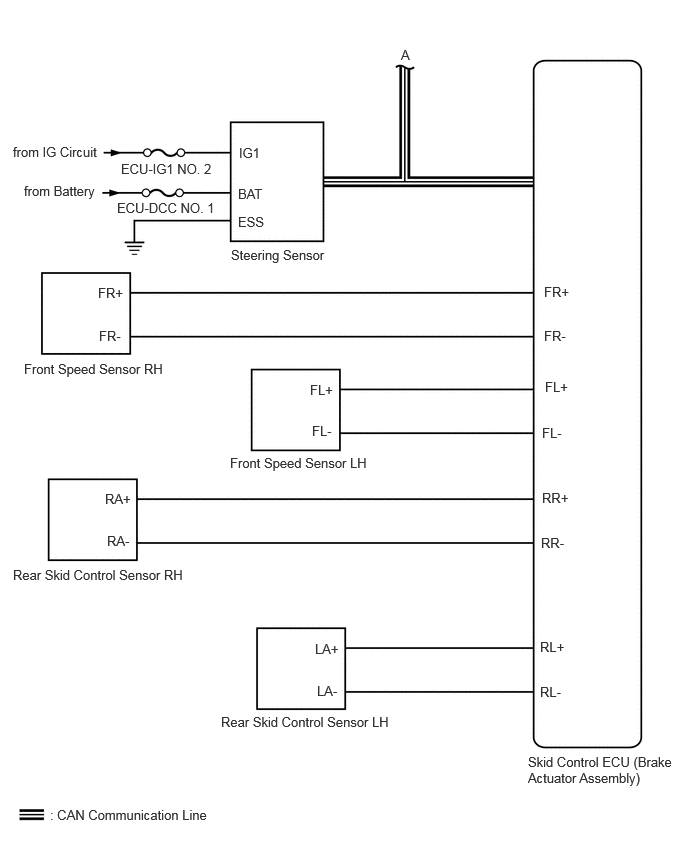

GTY957635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
