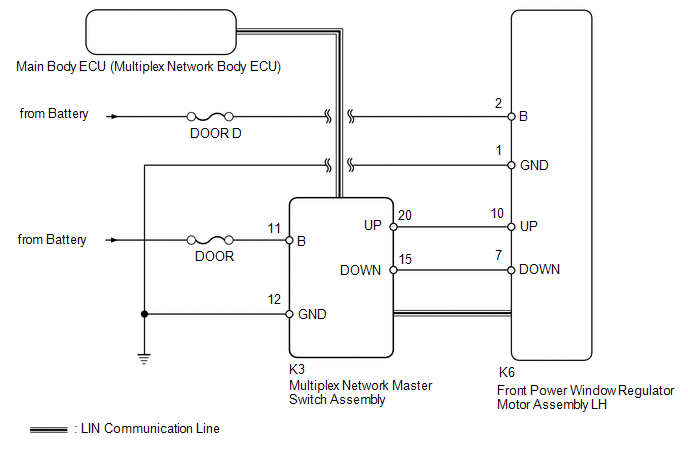

Driver Side Power Window does not Operate with Power Window Master Switch [08/2015 - 08/2019]: Wiring Diagram

GTY648461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
