Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [08/2015 - ]: Procedure

1. Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2015 - ] ).
2. Check for DTCs (Refer to DTC CHECK / CLEAR [08/2015 - ] ).
   RESULT



   Result	Proceed to
   DTC is not output	A
   DTC B2311 is output	B
   DTC B2312 is output	C
   DTC B2313 is output	D

Result:

B

GO TO DTC B2311

(Refer to DTC B2311: Power Window Motor Malfunction [08/2015 - ] )

Result:

C

GO TO DTC B2312

(Refer to DTC B2312: Power Window Switch Malfunction [08/2015 - ] )

Result:

D

GO TO DTC B2313

(Refer to DTC B2313: Glass Position Initialization Incomplete [08/2015 - ] )

Result:

A

See step  2

1. Check that the manual up/down function using the front power window regulator switch can operate the front power window (Refer to OPERATION CHECK [08/2015 - 08/2016] , or refer to OPERATION CHECK [08/2016 - ] ).

   OK

   Front passenger side door power window moves.

Result:

NG

GO TO "Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch"

(Refer to Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [08/2015 - ] )

Result:

OK

See step  3

1. Use the Data List to check if the front power window regulator is functioning properly (Refer to DATA LIST / ACTIVE TEST [08/2015 - ] ).
   P-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   P Door P/W Auto SW	Front passenger side power window auto up/down signal / ON or OFF	ON: Front passenger side power window auto up/down switch operated OFF: Front passenger side power window auto up/down switch not operated	-

   OK

   On tester screen, item changes between ON and OFF according to above chart.

Result:

OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(Refer to REMOVAL [08/2015 - ] )

Result:

NG

See step  4

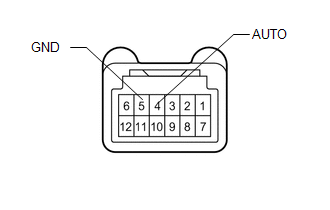

1. Remove the power window regulator switch (Refer to REMOVAL [08/2015 - ] ).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   4 (AUTO) - 5 (GND)	Auto up/down operation	Below 1 Ω
   4 (AUTO) - 5 (GND)	Not operated	10 kΩ or higher

Result:

NG

REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY RH

(Refer to REMOVAL [08/2015 - ] )

Result:

OK

See step  5

1. Disconnect the J1 power window regulator switch connector.
2. Disconnect the J6 power window regulator motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J1-4 (AUTO) - J6-4 (AUTO)	Always	Below 1 Ω
   J1-5 (GND) - Body ground	Always	Below 1 Ω
   J1-4 (AUTO) - Body ground	Always	10 kΩ or higher

Result:

OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(Refer to REMOVAL [08/2015 - ] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
