Occupant Classification System (Diagnostics - Introduction)
>>
Occupant Classification System
>>
System Diagram [08/2015 - 08/2021]
>>
System Diagram [08/2015 - 08/2021]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [08/2015 - 08/2021]

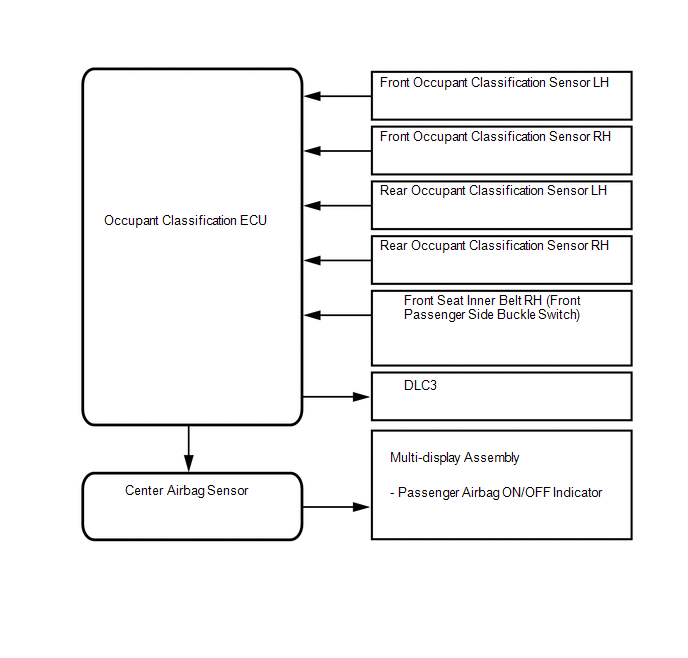

Fig 1: Occupant Classification System Diagram
