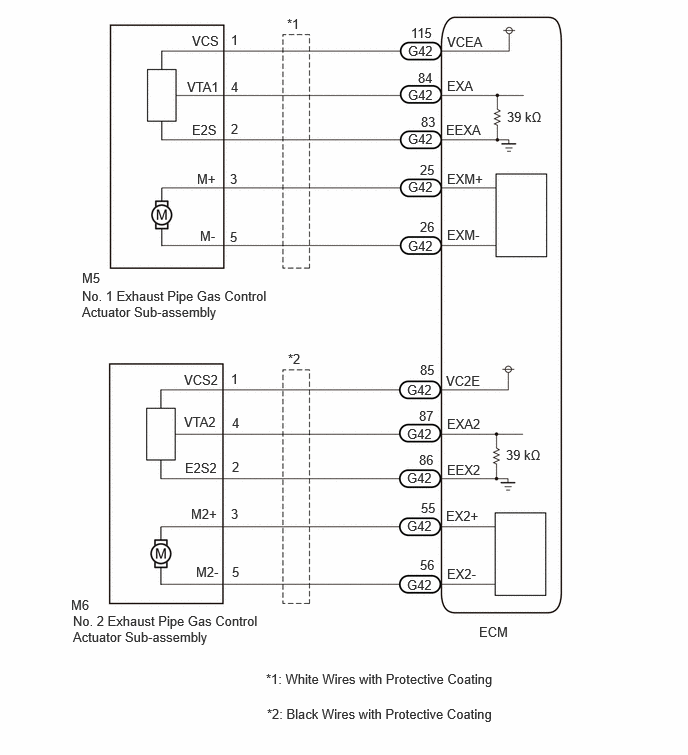

DTC P26C6: Exhaust Flow Control Valve "A" Control Circuit Low; DTC P26C7: Exhaust Flow Control Valve "A" Control Circuit High; DTC P2BF9: Exhaust Flow Control Valve "B" Control Circuit Low; DTC P2BFA: Exhaust Flow Control Valve "B" Control Circuit High [05/2023 - ]: Wiring Diagram

GTY1241474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
