System Diagram [01/2017 - 04/2020]

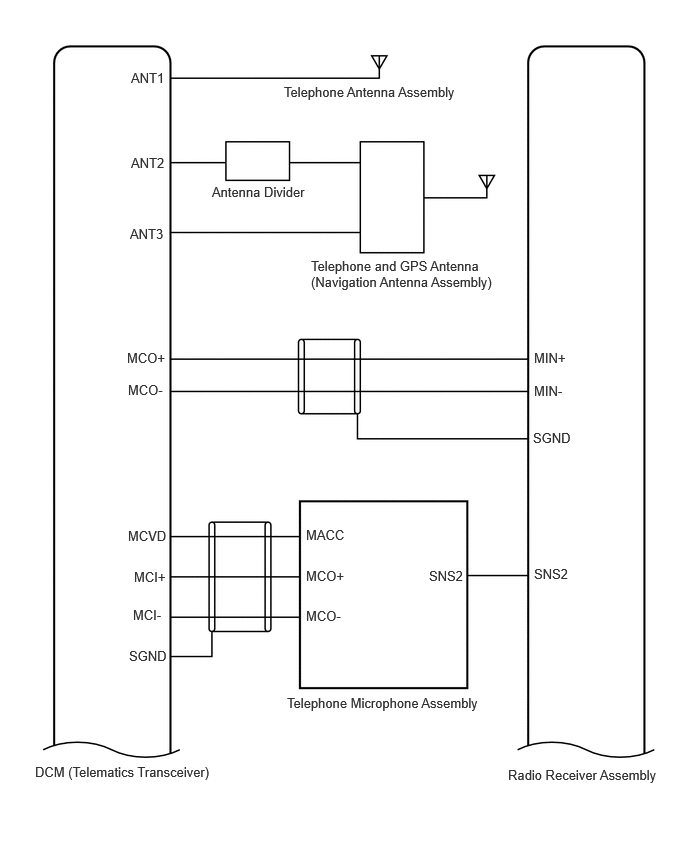

GTY1174475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

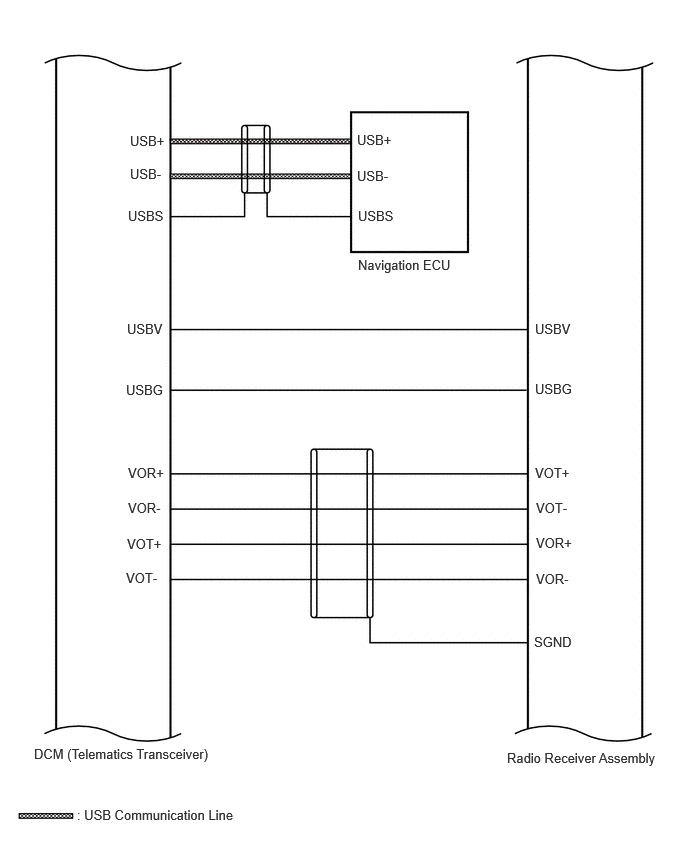

GTY1174267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

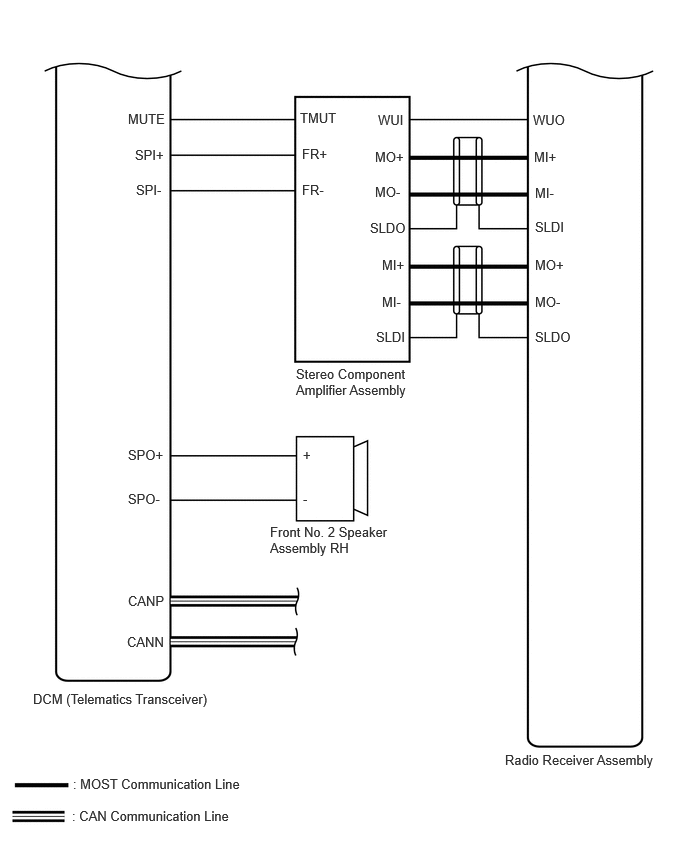

GTY1175997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
