VC Output Circuit [12/2017 - 10/2020]: Wiring Diagram
For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to

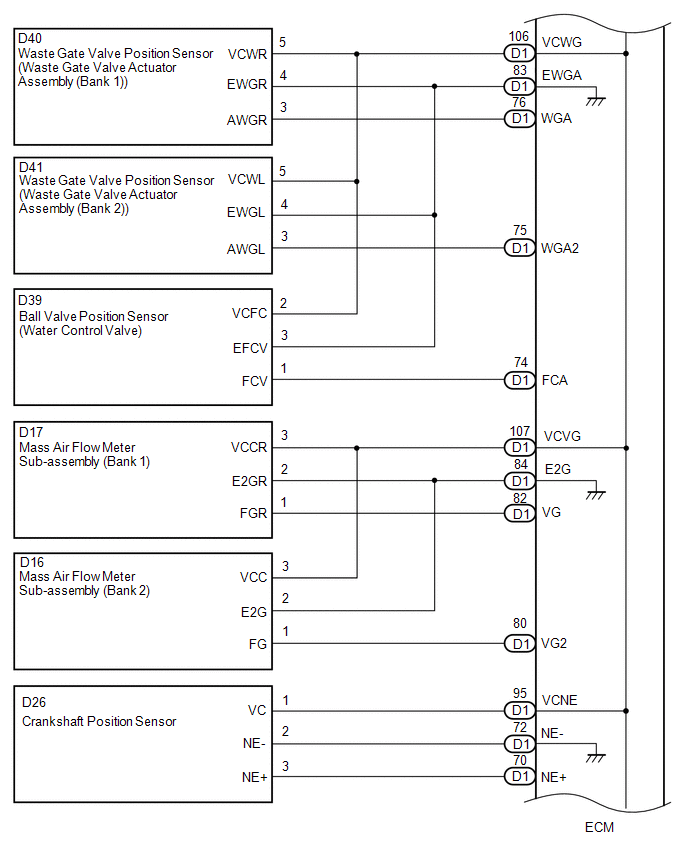

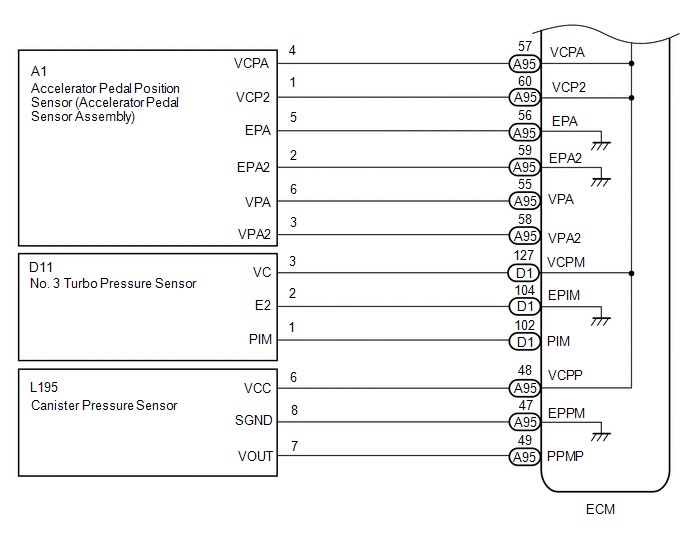

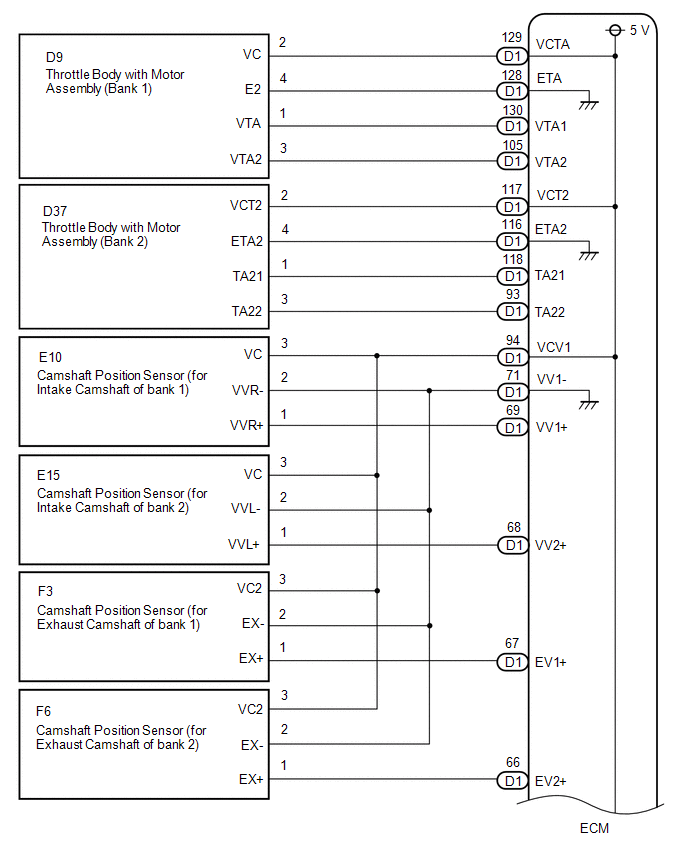

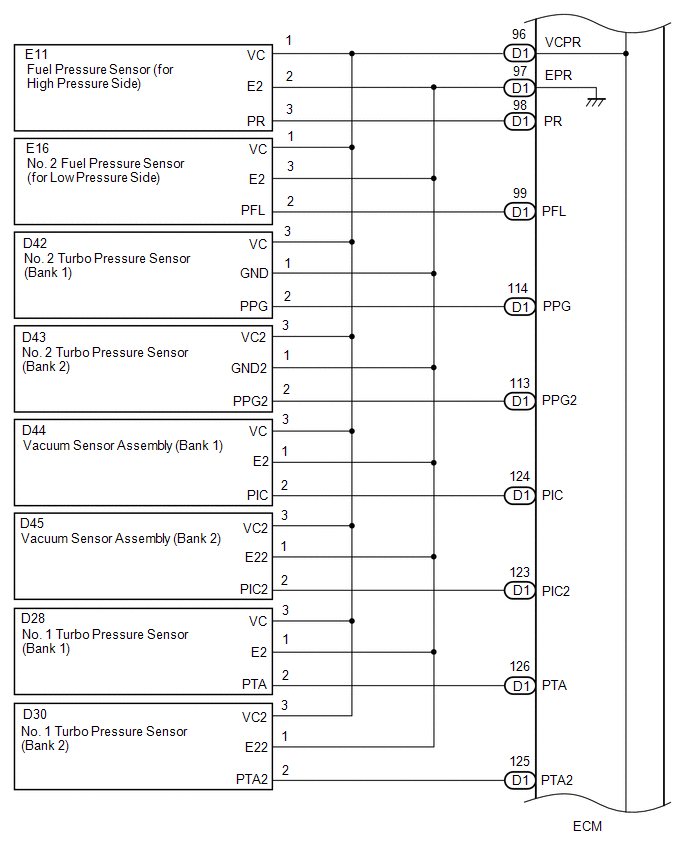

WIRING DIAGRAM
VC Output Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
