Inspection [12/2017 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.

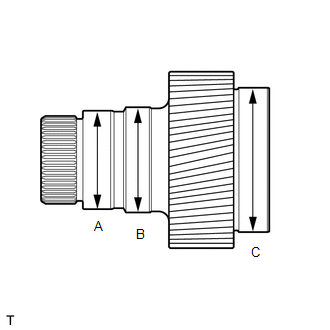

- INSPECT TRANSFER FRONT DRIVE GEAR ASSEMBLY
Using a micrometer, measure the outer diameter of the transfer front drive gear journal.
Maximum
Measurement Area When New [mm] Minimum [mm] A 50.981 to 51.000 mm (2.0072 to 2.0078 in.) 50.981 mm (2.0072 in.) B 54.461 to 54.480 mm (2.1442 to 2.1448 in.) 54.461 mm (2.1442 in.) C 74.461 to 74.480 mm (2.9316 to 2.9322 in.) 74.461 mm (2.9316 in.) HINT:
If the outer diameter is less than the minimum, replace the transfer front drive gear assembly.

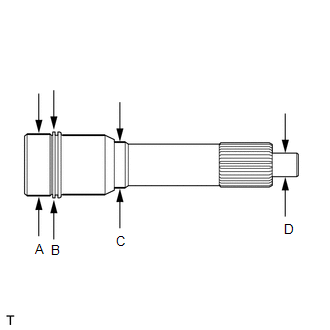

- INSPECT TRANSFER INPUT SHAFT
Using a micrometer, measure the outer diameter of the transfer input shaft journal.
Maximum
Measurement Area When New [mm] Minimum [mm] A 47.975 to 48.000 mm (1.8888 to 1.8897 in.) 47.975 mm (1.8888 in.) B 50.750 to 50.870 mm (1.9981 to 2.0027 in.) 50.750 mm (1.9981 in.) C 34.961 to 34.986 mm (1.3765 to 1.3774 in.) 34.961 mm (1.3765 in.) D 17.980 to 18.000 mm (0.7079 to 0.7086 in.) 17.980 mm (0.7079 in.) HINT:
If the outer diameter is less than the minimum, replace the transfer input shaft.
